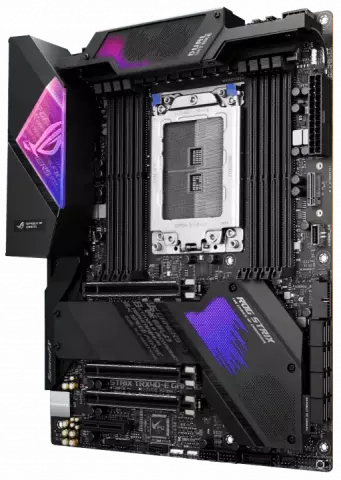

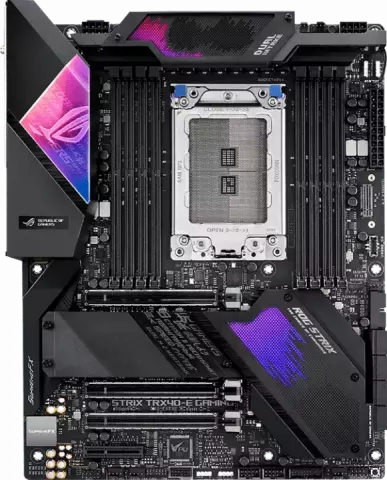

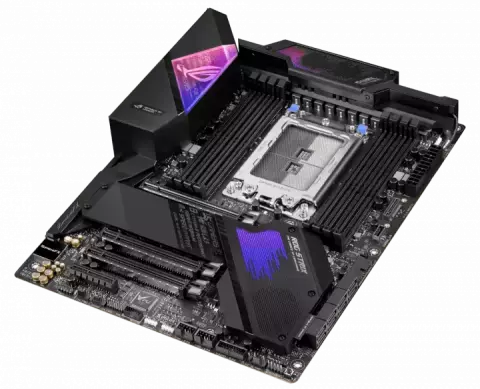

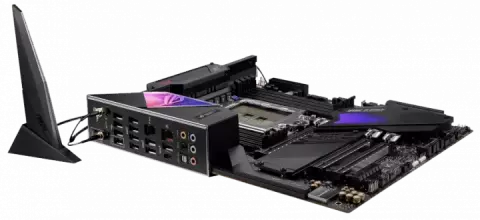

مادربرد ASUS مدل ROG STRIX TRX40-E GAMING

sTRX4

AMD TRX40

AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors

DDR4

4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 2-Way CrossFireX Technology

3 Gen AMD Ryzen Threadripper Series Desktop processors : 2 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3

with vertical M key

type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

0

1

10

Realtek RTL8125-CG 2.5G LAN Intel I211-AT

1 x Gigabit LAN Controller(s) Anti-surge LANGuard

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 x4

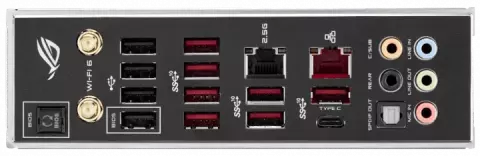

8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C) 1 x Anti-surge 2.5G LAN (RJ45) port 1x USB BIOS FlashBack Button(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector 1 x USB BIOS FlashBack button(s)

2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x M.2 Socket 1 with M key

type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with vertical M key

type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 0 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x Speaker connector 1 x Chipset Fan Header 1 x VRM_HS_FAN Header

5-Way Optimization by Dual Intelligent Processors 5 Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 4

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. Gamer's Guardian: DRAM Overcurrent Protection Highly Durable Components DIGI+ VRM SafeSlot ESD Guards on LAN

Audio

and USB ports LiveDash OLED 1.3 ” AURA : Aura Lighting Control Addressable Gen 2 Header ASUS Exclusive Features : USB BIOS FlashBack AI Suite 3 Ai Charger Pre-mounted I/O Shield ASUS NODE: hardware control interface BIOS FlashBack Button ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector
