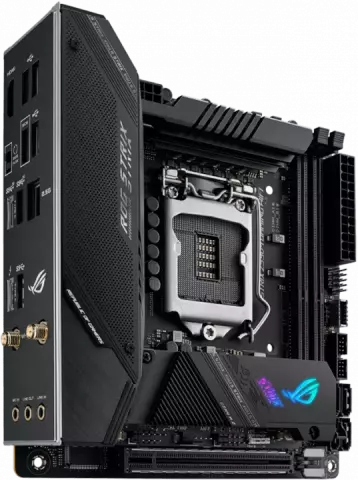

مادربرد ASUS مدل ROG STRIX GAMING Z590-I WIFI

LGA1200

Intel Z590

نسل یازدهم سری Core، نسل دهم سری Core، Pentium Gold، Celeron

DDR4

5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC

Un-buffered Memory

دو کاناله

OptiMem II

1x Thunderbolt 4 port (1 x USB Type-C) 1x HDMI 2.0 port

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots

فقط پردازنده های نسل 11 از PCIe 4.0x16 پشتیبانی می کنند.

پردازنده های نسل 10 از 3.0x16 پشتیبانی می کنند.

ALC4080 + Savitech SV3H712 AMP

7.1 کانال

1x Intel 2.5Gb Ethernet

Intel Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

v5.2

1x USB 3.2 Gen 2x2 (USB Type-C)

1 × USB 3.2 Gen2

1 × USB 3.2 Gen1

Mini ITX

1x USB 3.2 Gen 2 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports additional 2 USB 2.0 ports

1x 4-pin CPU Fan header 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 1x AURA Addressable Gen 2 header 1x AURA RGB header 1x Clear CMOS header 1x Front Panel Audio header (AAFP) 1x Speaker header 1x 10-1 pin System Panel header 1x Thermal Sensor header

Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync ASUS HYDRANODE

دارای دکمه آپدیت بایوس
