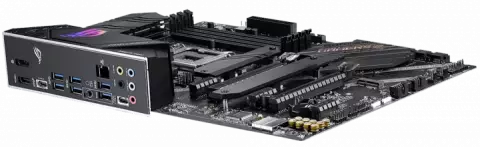

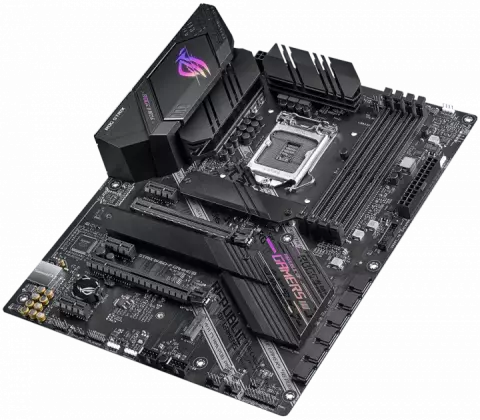

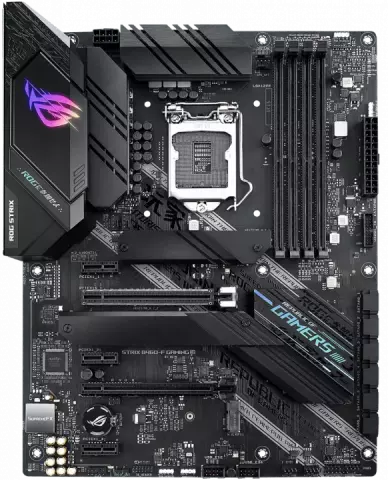

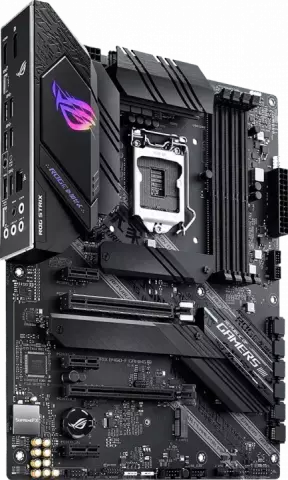

مادربرد ASUS مدل ROG STRIX B460-F GAMING

LGA1200

intel B460

Intel Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

DDR4

2933/2800/2666/2400/2133 MHz

دو کاناله

Non-ECC

Un-buffered Memory OptiMem

DisplayPort 1.4/HDMI 1.4b

Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

Supports AMD 2-Way CrossFireX Technology

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

Intel I219-V 1Gb Ethernet

ASUS LANGuard

M.2 slot only (Key E) (Support PCIe interface)

*Wi-Fi module is sold separately

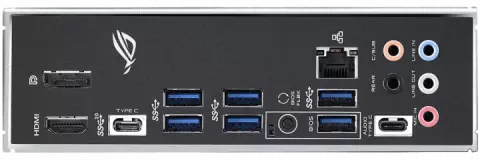

6 × USB 3.2 Gen1

1 × USB 2.0

1 × USB Type-C Gen2

ATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector
