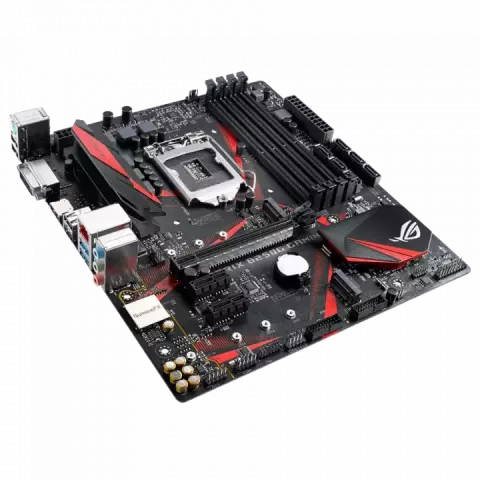

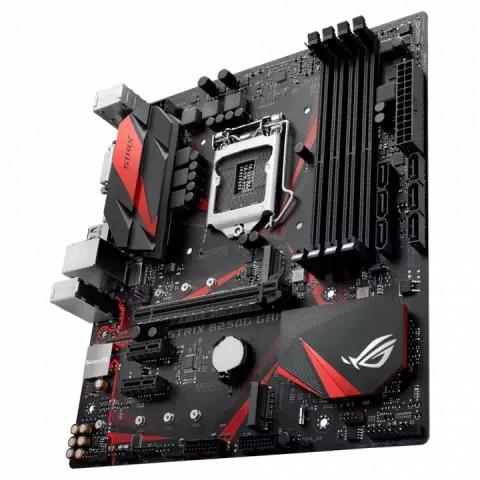

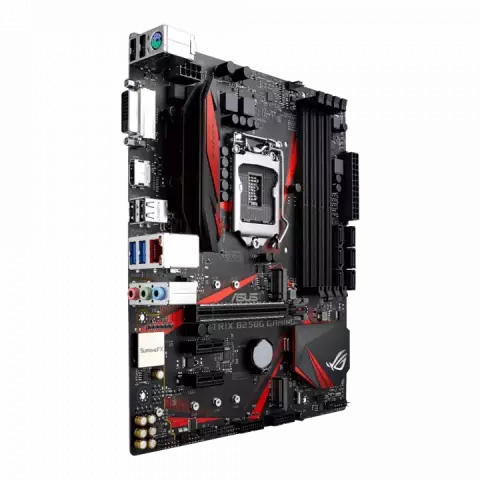

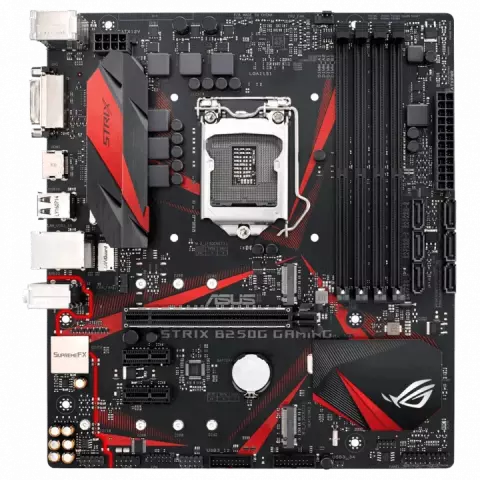

مادربرد Asus DDR4 مدل ROG STRIX B250G GAMING

LGA1151

Intel B250

7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2400/2133 MHz

non-ECC

un-buffered memory

HDMI / DVI

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Intel I219V

Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

SupremeFX 8-Channel High Definition Audio CODEC S1220A

1 x PCIe 3.0/2.0 x1 (x16 mode)

1

microATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x AAFP connector 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) ( x 4 -pin) 1 x Chassis Fan connector(s) ( x 4 -pin) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector

Gamer's Guardian: - ESD Guards on LAN

Audio

KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot GPU Boost ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Fan Xpert 3
