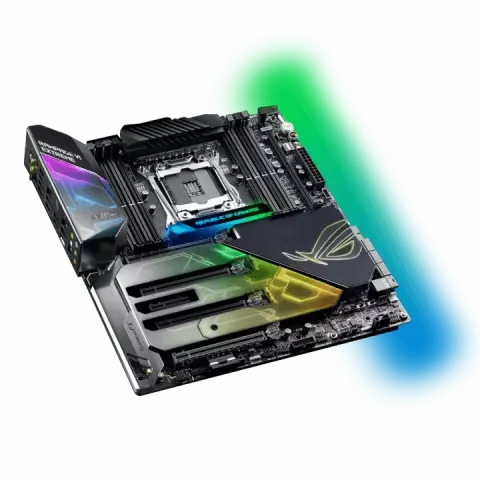

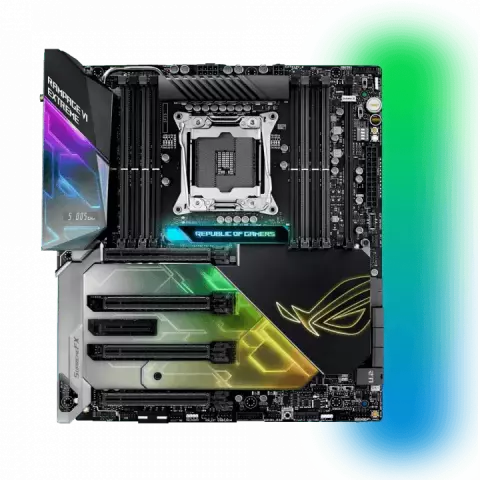

مادربرد Asus DDR4 مدل ROG RAMPAGE VI EXTREME

LGA2066

Intel X299

Core X-Series Processor 79xx

78xx Series Processors Supports Intel Virtual RAID on CPU (VROC) Supports Intel 14 nm CPU

DDR4

4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Non-ECC

Un-buffered Memory Quad Channel Memory Architecture

Supports NVIDIA 4-Way SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology

Supports AMD 4-Way CrossFireX Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology

1 x ROG DIMM.2 Module support(CPU_DIMM.2)

M.2 X4 with M Key design

type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x ROG DIMM.2 Module support(PCH_DIMM.2)

M.2 X4 with M Key design

type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x U.2 port

support PCIe 3.0 x4 NVM Express storage Intel X299 Chipset : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

Raid 0

1

5

10

Aquantia AQC-107 10G

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

4 x PCIe 3.0 x16 (x16

x16/x16

x16/x0/x16/x8

or x16/x8/x8/x8 mode with 44-LANE CPU; x16

x16/x8 orx8/x8/x8 mode with 28-LANE CPU) 1 x PCIe 3.0 x4 Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Up to 4600Mbps transfer speed

1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1) 1 x Aquantia AQC-107 10G LAN port

Extended ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

1 x W_PUMP+ 1 1 x W_PUMP+ 2 1 x WB_SENSOR 1 x Aura Addressable Strip Header(s) 1 x U.2 port 1 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x Thunderbolt header(s) 1 x 8-pin EATX 12 V Power connector 1 x 4-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 1 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x PCIe x16 lane switch 2 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button

OC Design - ASUS PRO Clock II Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App Gamer's Guardian: - 10K Black Metallic Capacitors - Stainless Steel Back I/O - SafeSlot LiveDash OLED SafeDIMM slot ASUS Wi-Fi GO! ASUS Exclusive Features : - AI Suite 3 - Ai Charger - USB 3.1 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 ASUS Q-Design : - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Performance Optimization : - DIGI + VRM - GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control - AI Suite 3 Digi+VRM Turbo App

دارای قابلیت RGB
