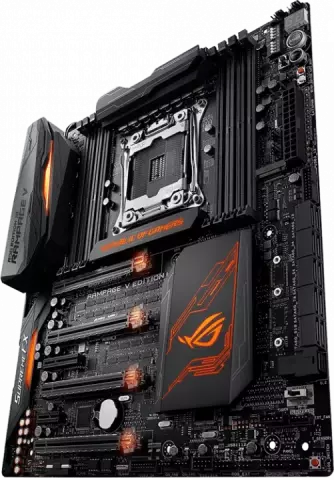

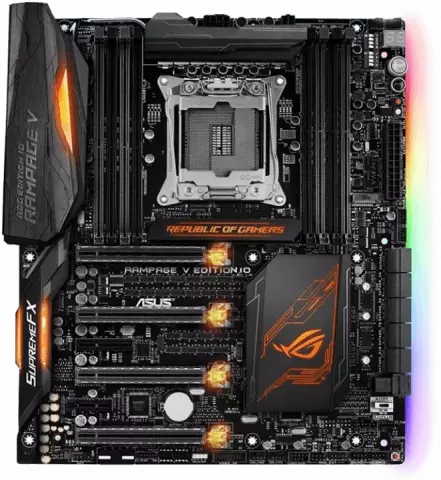

مادربرد Asus DDR4 مدل ROG RAMPAGE V EDITION 10

LGA2011-v3

Intel X99

Core i7 X-Series Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 3.0

DDR4

3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz

Non-ECC

Un-buffered Memory Quad Channel Memory Architecture

Supports NVIDIA 4-Way SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology

Supports AMD 4-Way CrossFireX Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M Key

type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)

Support Raid 0

1

5

10

Intel I218V

1 x Gigabit LAN Controller(s) - Intel I211-AT

1 x Gigabit LAN Controller(s

ROG SupremeFX 8-Channel High Definition Audio CODEC

4 x PCIe 3.0/2.0 x16 (x16

x16/x16

x16/x8/x8

x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16

x16/x8 or x8/x8/x8 mode with 28-LANE CPU) 1 x PCIe 2.0 x4 1 x U.2 port

support PCIe 3.0 x4 NVM Express storage

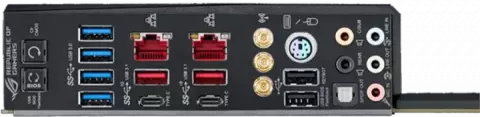

4 x USB 3.1 Gen 1 (blue) 1 x Clear CMOS button(s) 3 x Wi-Fi antenna port(s) 1 x USB BIOS Flashback Button(s)

Extended ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura RGB Strip Header 1 x M.2 Socket 3 for M Key

type 2260/2280/22110 storage devices support ( Support PCIE SSD only) 1 x TPM header 10 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x SLI/CFX switch (2/3-WAY adjustments) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 9 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x BIOS Switch button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Water Pump header (4-pin) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x U.2 connector 1 x System panel connector 1 x DRAM channel switch 1 x PCIe x16 lane switch

5-Way Optimization by Dual Intelligent Processors 5 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo Core App ASUS Wi-Fi GO Wi-Fi GO! Function: Cloud GO!

Remote Desktop

Remote Keyboard & Mouse

File Transfer ASUS Exclusive Features : MemOK AI Suite 3 Ai Charger+ Anti-Surge USB 3.1 Boost Remote Entertainment Media Streamer HyStream ASUS Quiet Thermal Solution : ASUS Fan Xpert 4 ASUS EZ DIY : ASUS CrashFree BIOS ASUS EZ Flash 3 ASUS USB BIOS Flashback ASUS UEFI BIOS EZ Mode Multi-language BIOS Push Notice ASUS Q-Design : ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-DIMM ASUS Q-Connector Overclocking Protection : ASUS C.P.R.(CPU Parameter Recall) Turbo App

دارای قابلیت RGB
