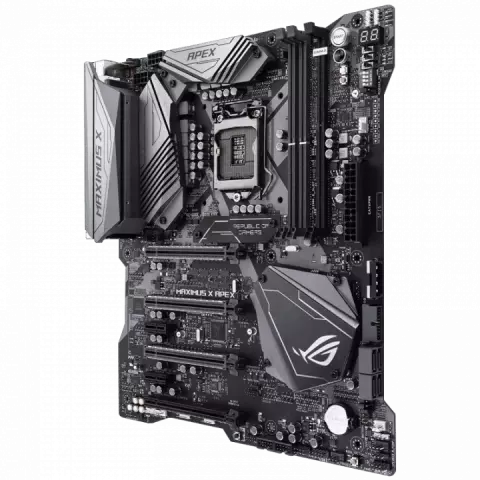

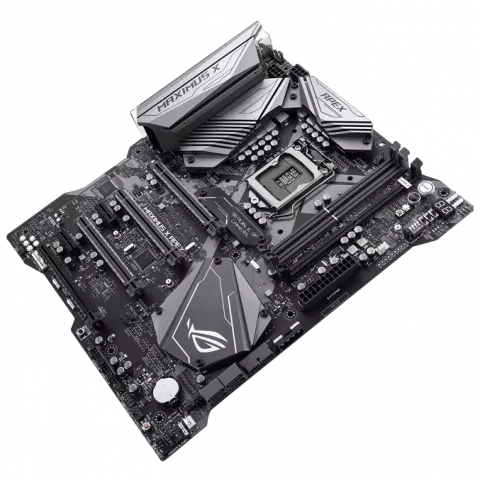

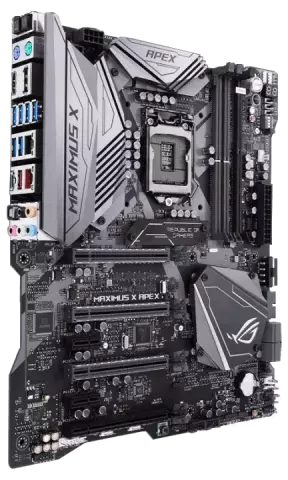

مادربرد Asus DDR4 مدل ROG MAXIMUS X APEX

LGA1151

Intel Z370

8th Generation Core Processors

DDR4

500(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

non-ECC

un-buffered memory

HDMI / DisplayPort

HDMI with max. resolution 4096 x 2160 @ 24 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 4-Way CrossFireX Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology

1 x ROG DIMM.2 Module support(PCH_DIMM.2)

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x ROG DIMM.2 Module support(PCH_DIMM.2)

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Raid 0

1

5

10

Intel I219V

Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

3 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)

1 x 5G LAN(RJ45) port(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s)

Extended ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x Q_Code 1 x AAFP connector 4 x Aura RGB Strip Headers 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 9 x ProbeIt Measurement Points 2 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x 14-1 pin TPM connector 1 x PCIe x16 lane switch 1 x 3D Mount screw port(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 3 x 4-pin Full Speed Fan connectors 3 x onboard LED ON/OFF jumper(s) 1 x PAUSE Switch 1 x RSVD Switch

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo Core App ASUS Exclusive Features : - AI Suite 3 - Anti-Surge ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting

دارای قابلیت RGB
