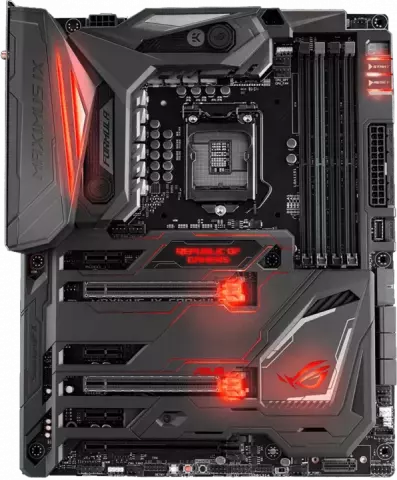

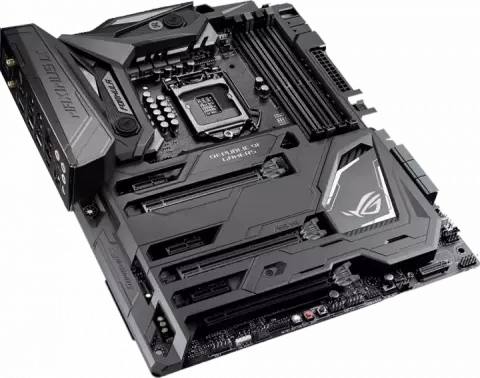

مادربرد Asus DDR4 مدل ROG MAXIMUS IX FORMULA Z270

LGA1151

Intel Z270

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

DDR4

4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DisplayPort 1.2 ports

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Intel® Z270 Chipset : 1 x M.2 Socket 3

with M Key

type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (PCIE mode only)*3

Support Raid 0

1

5

10

Intel® I219V Anti-surge LANGuard ROG GameFirst Technolog

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

2 x PCIe 3.0/2.0 x16 (x16 or dual x8

gray) Supports Intel® Smart Response Technology*4 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *5

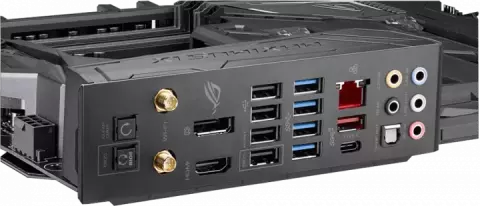

1 x Clear CMOS button(s) 2 x Wi-Fi antenna port(s) 1 x USB BIOS Flashback Button(s)

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (PCIE mode only) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App ASUS Exclusive Features MemOK AI Suite 3 Ai Charger ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS USB BIOS Flashback ASUS Q-Design ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector Overclocking Protection ASUS C.P.R.(CPU Parameter Recall)
