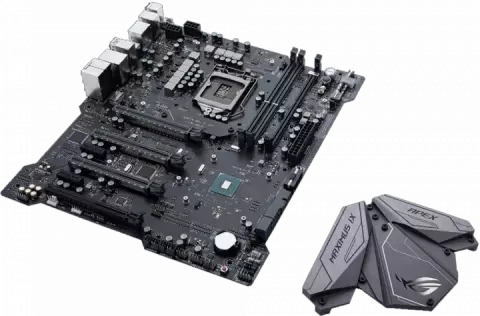

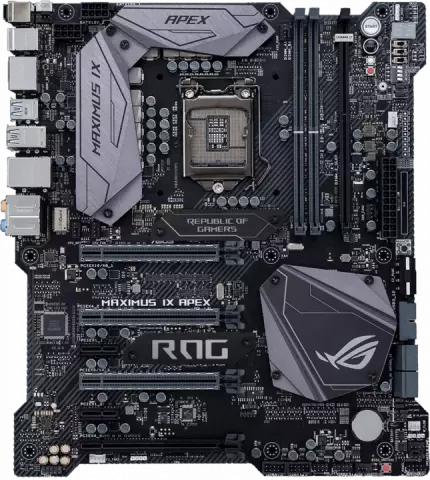

مادربرد Asus DDR4 مدل ROG MAXIMUS IX APEX Z270

Intel Z270

Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU

DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

non-ECC

un-buffered memory

HDMI / DisplayPort ports

Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 4-Way CrossFireX Technology

Intel® Z270 Chipset : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Support Raid 0

1

5

10

Intel® I219V

1 x Gigabit LAN Controller(s)

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A*2

2 x PCIe 3.0/2.0 x16 (x16 or dual x8

gray) 1 x PCIe 3.0/2.0 x16 (x4 mode

black)

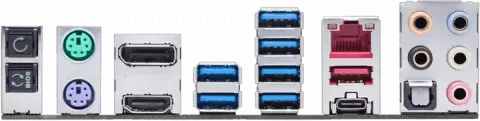

2 x USB 3.1 Gen 2 ()Type-A + USB Type-CTM 6 x USB 3.1 Gen 1 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s)

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

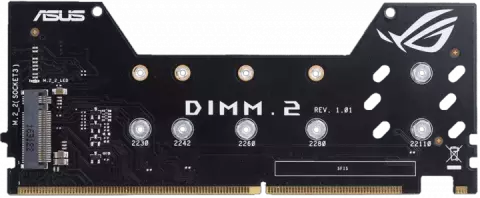

1 x AAFP connector 2 x RGB Header(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 9 x ProbeIt Measurement Points 1 x EZ Plug connector(s) (4-pin Molex power connector) 2 x DRAM channel jumper 1 x Reset button(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x 14-1 pin TPM connector 1 x Slow Mode jumper(s) 1 x W_Pump+ Header 1 x AIO PUMP Header 1 x 3D Mount screw port(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x Thermal sensor connector 1 x Start button 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 3 x 4-pin Full Speed Fan connectors 1 x MemOK! Button 1 x PCIe x16 Lane Switch 3 x onboard LED ON/OFF jumper(s) 1 x PAUSE Switch 1 x RSVD Switch

5-Way Optimization by Dual Intelligent Processors 5 SafeDIMM slot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - MemOK! - AI Suite 3 - Anti-Surge ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Performance Optimization : - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
