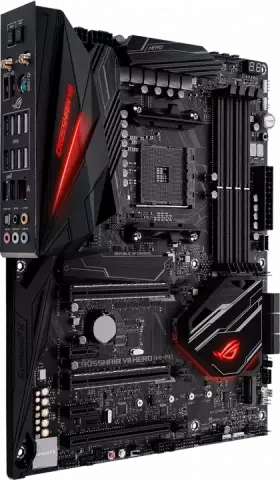

مادربرد Asus DDR4 مدل ROG CROSSHAIR VII HERO (WI-FI)

AM4

AMD X470

AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors

DDR4

AMD Ryzen 2nd Generation Processors 4 x DIMM

Max. 64GB

DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors 4 x DIMM

Max. 64GB

DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz AMD 7th Generation A-Series/Athlon X4 Processors 4 x DIMM

Max. 64GB

DDR4 2400/2133

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors Supports NVIDIA® 2-Way SLI Technology

AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors Supports AMD 3-Way CrossFireX Technology AMD Ryzen with Radeon Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors Supports AMD CrossFireX Technology

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA mode)

Support Raid 0

1

10

Intel I211-AT

1 x Gigabit LAN Controller(s) - Anti-surge LANGuard

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

اتصالات : Wi-Fi 802.11 a/b/g/n/ac

Bluetooth V4.2

1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 8-pin EATX 12 V Power connector 1 x 4-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x Slow Mode jumper(s) 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector 1 x Speaker connector

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App Gamer's Guardian: SafeSlot AURA : Aura Lighting Control Aura RGB Strip Headers Aura Addressable Strip Header(s) ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector
