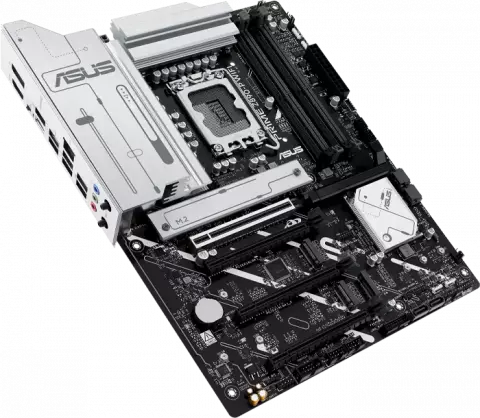

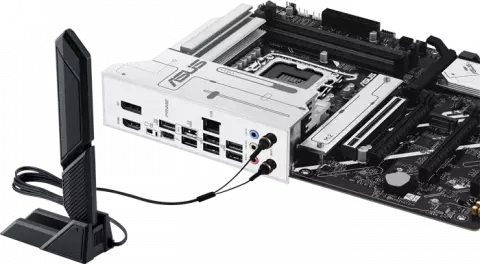

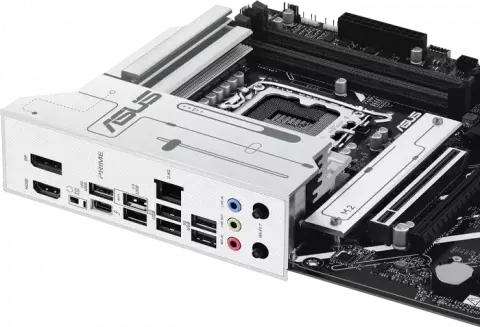

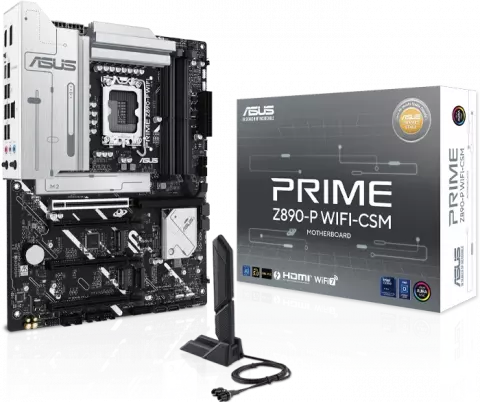

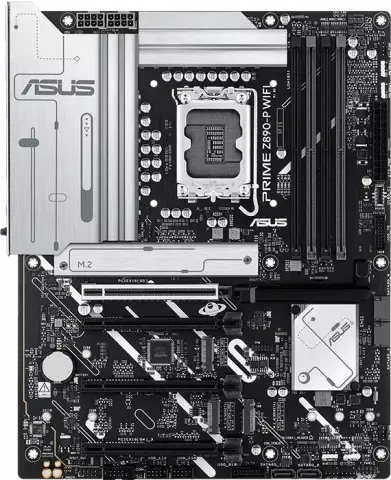

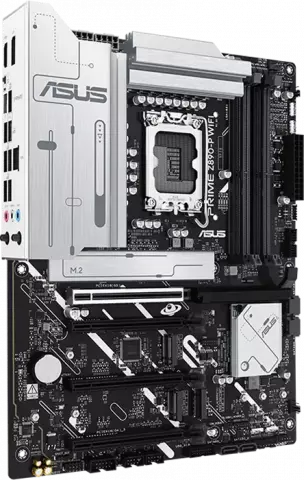

مادربرد ASUS مدل Prime Z890-P WIFI-CSM

مبتنی بر Intel

LGA1851

Intel Z890

نسل دوم Intel

سری Core Ultra نسل دوم Intel

DDR5

up to 8666+MT/s (OC)

Non-ECC

Un-buffered

دو کاناله

ASUS Enhanced Memory Profile III (AEMPIII)

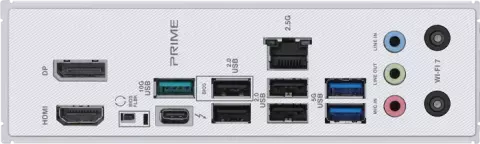

1x DisplayPort 1x HDMI port 1x Intel Thunderbolt 4 port (USB Type-C)

رزولوشن DisplayPort: 4K با فرکانس 60 هرتز

رزولوشن HDMI 2.1: 4K با فرکانس 60 هرتز

رزولوشن Thunderbolt 4: 8K با فرکانس 60 هرتز

M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

RAID 0/1/5/10

Realtek 7.1 Surround Sound High Definition Audio CODEC*

7.1 کانال

1 x Realtek 2.5Gb Ethernet

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

v5.4

1xThunderbolt 4 TypeC

1 × USB 3.2 Gen2

2 × USB 3.2 Gen1

4 × USB 2.0

1 x Wi-Fi module

ATX

1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt™ (USB4®) header

ASUS EZ DIY Aura Sync ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution

Windows 11 (22H2 & later)
