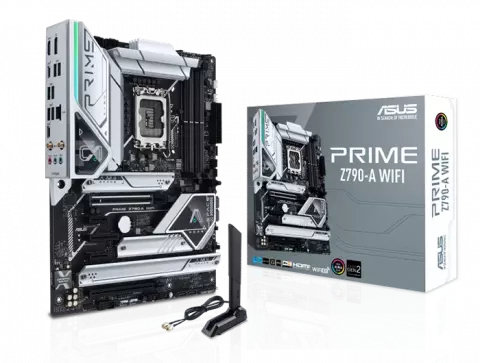

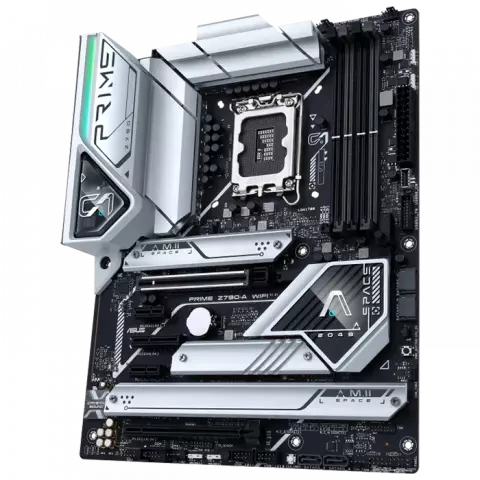

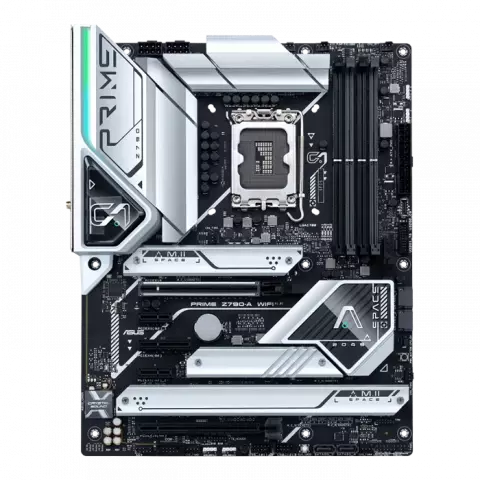

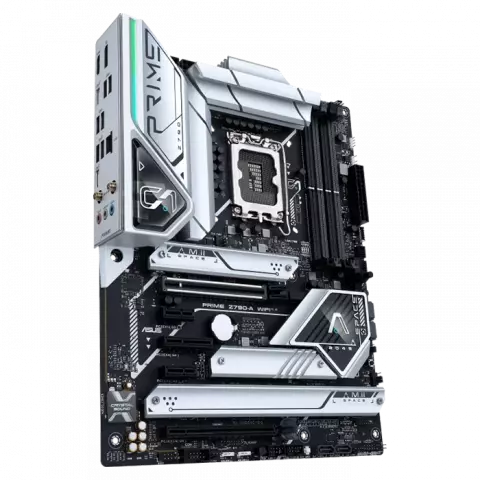

مادربرد ASUS مدل Prime Z790-A WIFI

مبتنی بر Intel

LGA1700

Intel Z790

نسل دوازدهم و سیزدهم Intel

نسل چهاردهم Intel

سری Core نسل سیزدهم Intel، نسل چهاردهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دوازدهم Intel

17

DDR5

7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800

Un-buffered Memory

دو کاناله

OptiMem II

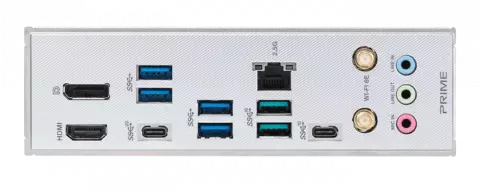

1x DisplayPort 1x HDMI® port

رزولوشن HDMI : 4K با فرکانس 60 هرتز

رزولوشن DisplayPort : 8K با فرکانس 60 هرتز

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

RAID 0/1/5/10

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

1x Intel® 2.5Gb Ethernet

ASUS LANGuard

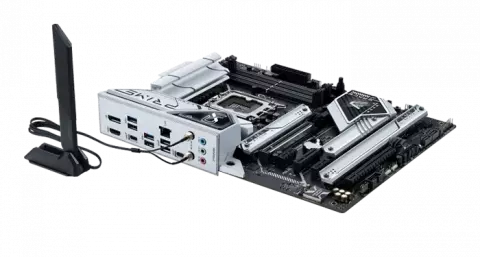

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

v5.3

1 * USB Type-C 3.2 Gen 2x2

2 × USB 3.2 Gen2

USB Type-C 3.2 Gen 2 x 1

4 × USB 3.2 Gen1

ATX

1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header

ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync
