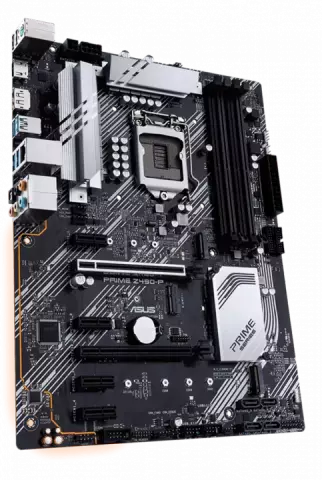

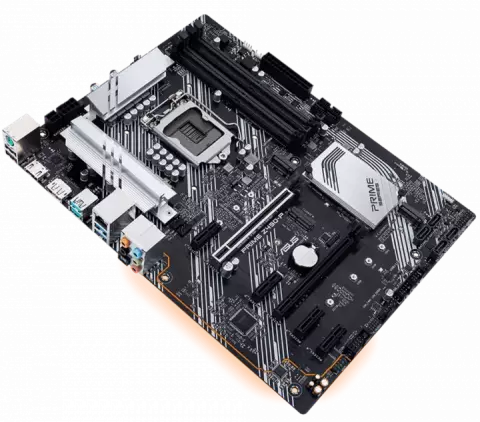

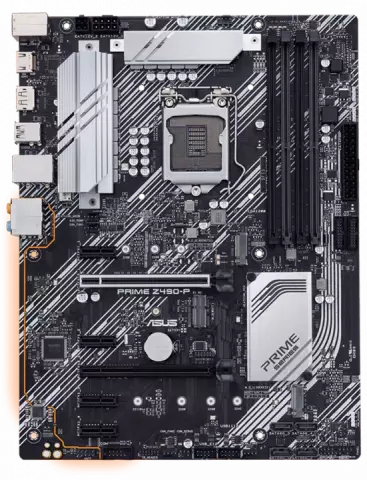

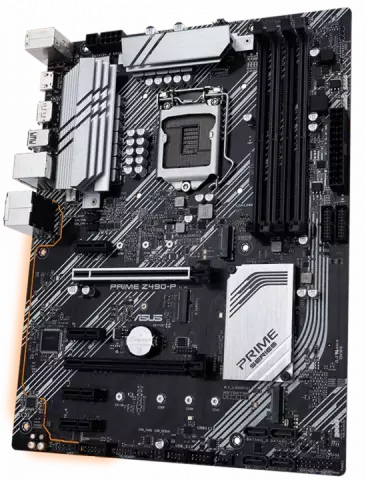

مادربرد ASUS مدل PRIME Z490-P

LGA1200

Intel Z490

Intel Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

DDR4

DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

DisplayPort / HDMI

Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)2 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

Raid 0

1

5

10

Realtek RTL8111H

Realtek ALC887 8-Channel High Definition Audio CODEC

2 × USB 3.2 Gen1

2 × USB 2.0

2 × USB 3.2 Gen2

Intel Rapid Storage Technology supports Intel Optane Memory Ready

ATX

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header

ASUS 5X PROTECTION III ASUS DIGI+ VRM (- Digital power design with Dr. MOS) ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core+ ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design ASUS EZ DIY Procool AURA Sync Standard RGB headers Addressable Gen 2 RGB header
