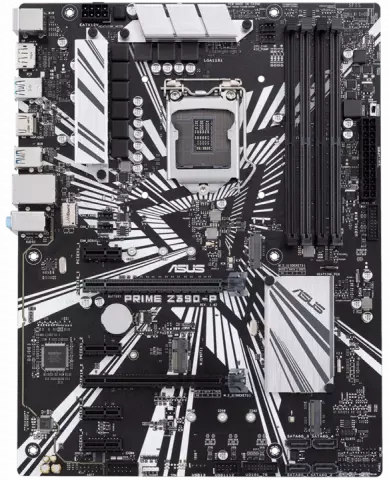

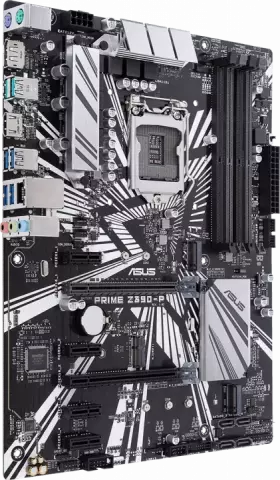

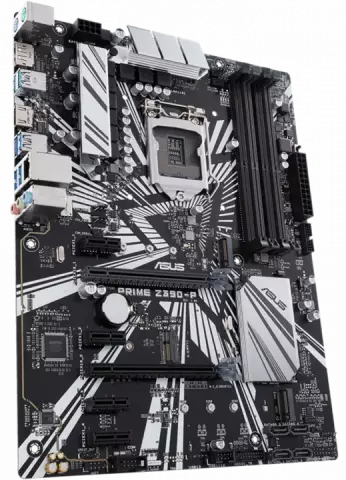

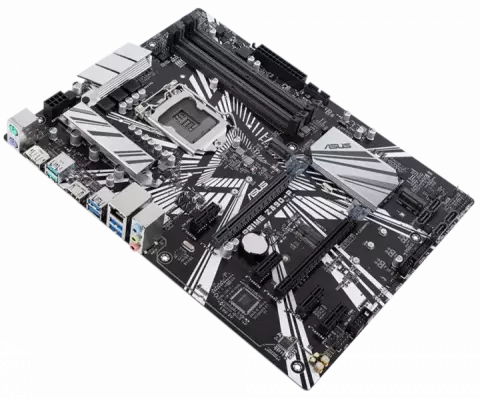

مادربرد ASUS مدل PRIME Z390-P

LGA1151 v2

Intel Z390

Intel Socket 1151 9th / 8th Gen Intel Core

Pentium Gold and Celeron Processors

DDR4

4 x DIMM

Max. 128GB

DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DisplayPort

Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

1 x M.2 Socket (Key E)

supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module

Realtek RTL8111H

support LANGuard

Realtek ALC887 8-Channel High Definition Audio CODEC

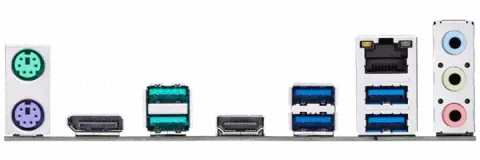

2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A

ATX

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x Lighting Control RGB Strip Header(s) 1 x M.2 Socket 1 with E key

type 2230 Wi-Fi/BT device support or Intel® CNVi (Integrated Wi-Fi/BT) module 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector

Fan Xpert4 Advanced fan and liquid controls for ultimate cooling and quietness ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS Optimem II： Optimem (Improved DDR4 stability) ASUS EPU : EPU ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS Fan Xpert 4 ASUS EZ DIY : ASUS O.C. Tuner ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM Overclocking Protection : ASUS C.P.R.(CPU Parameter Recall) M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer Auto download driver and software. Friendly for first PC builder.
