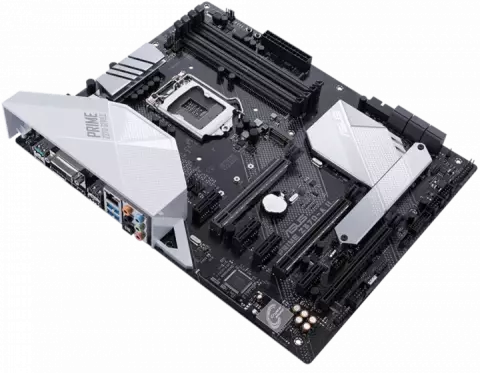

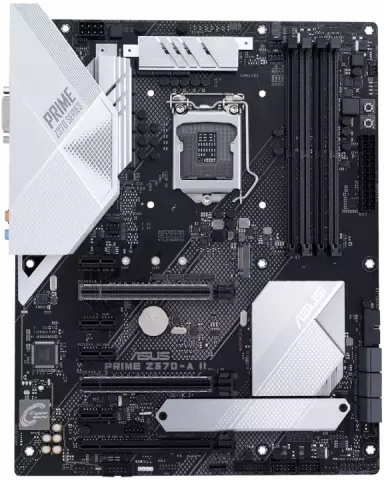

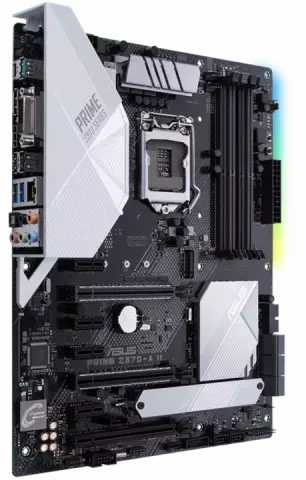

مادربرد Asus DDR4 مدل PRIME Z370-A II

LGA1151 v2

Intel Z370

Intel Socket 1151 9th / 8th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

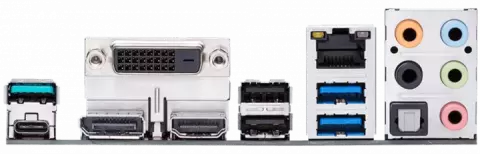

HDMI/DVI-D/DisplayPort ports

Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (PCIE mode only)

Support Raid 0

1

5

10

Intel I219V

1 x Gigabit LAN Controller(s)

ASUS Turbo LAN Utility

ASUS LAN Guard

Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

1 x DVI-D

ATX

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 1 x AIO PUMP Header 1 x M.2 Fan Header

OC Design - ASUS PRO Clock Technology Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 4

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention ASUS ESD Guards - Enhanced ESD protection ASUS TPU : Auto Tuning GPU Boost ASUS EPU : EPU AURA : Aura Lighting Control Aura RGB Strip Headers Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : MemOK! AI Suite 3 Ai Charger Turbo LAN Crystal Sound 3 PC Cleaner ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution ASUS Fan Xpert 4 ASUS EZ DIY : Precision Tweaker 2 ASUS O.C. Tuner ASUS O.C. Profile ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design : ASUS Q-Shield ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector
