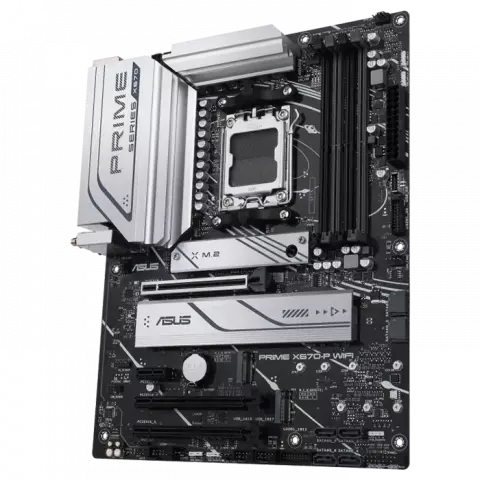

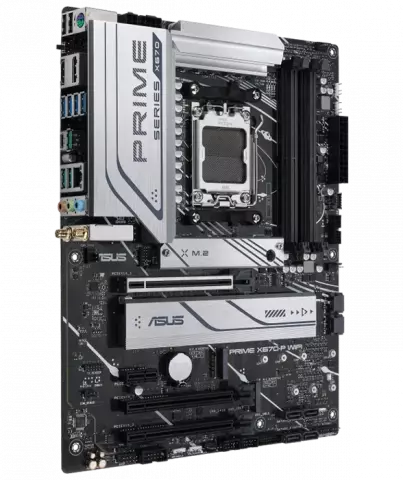

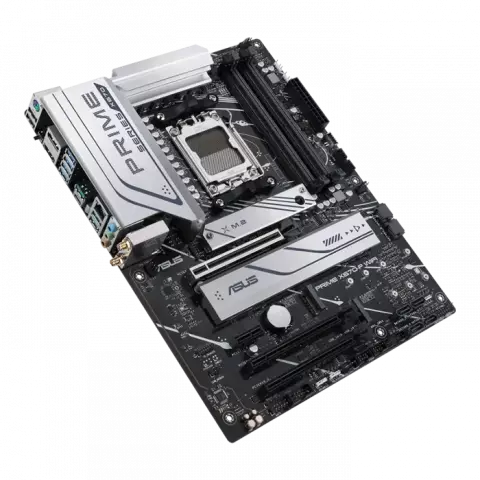

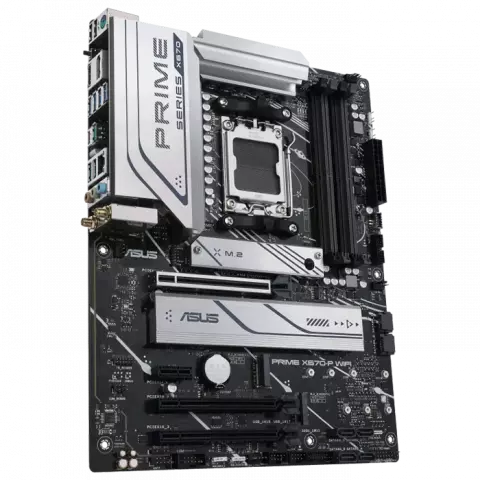

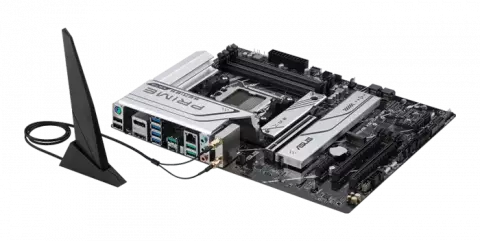

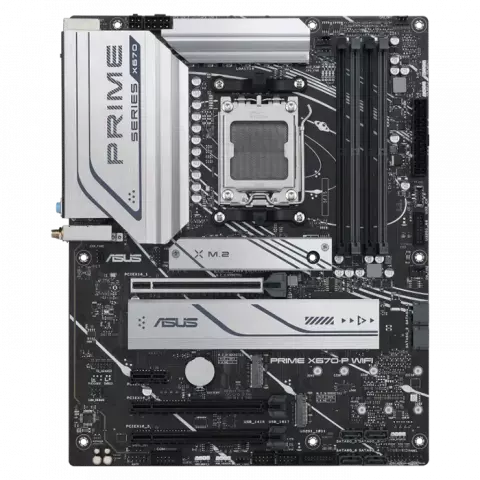

مادربرد ASUS مدل PRIME X670-P WIFI

مبتنی بر AMD

AM5

AMD X670

سری Ryzen

سری 7000 پردازنده AMD Ryzen

14

DDR5

7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800

ECC and Non-ECC

Un-buffered Memory

دو کاناله

OptiMem II

قابلیت پشتیبانی از EXPO

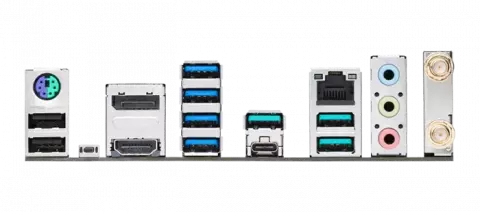

1x DisplayPort 1x HDMI port

رزولوشن DisplayPort 1.4 : 8K با فرکانس 60 هرتز

رزولوشن HDMI 2.1 : 4K با فرکانس 60 هرتز

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

0/1/10

Realtek 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

1x Realtek 2.5Gb Ethernet

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

v5.2

1 * USB Type-C 3.2 Gen 2x2

3 × USB 3.2 Gen2

4 × USB 3.2 Gen1

2 × USB 2.0

ATX

1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header

ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync
