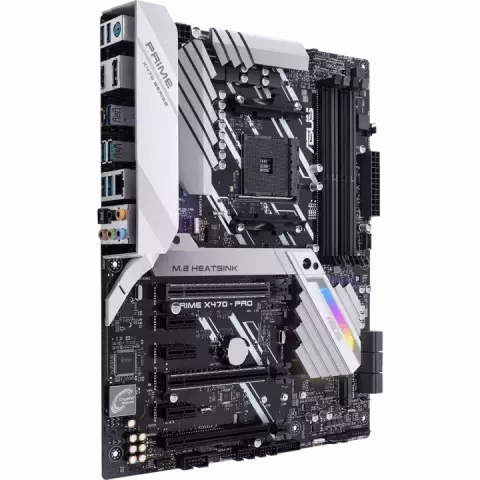

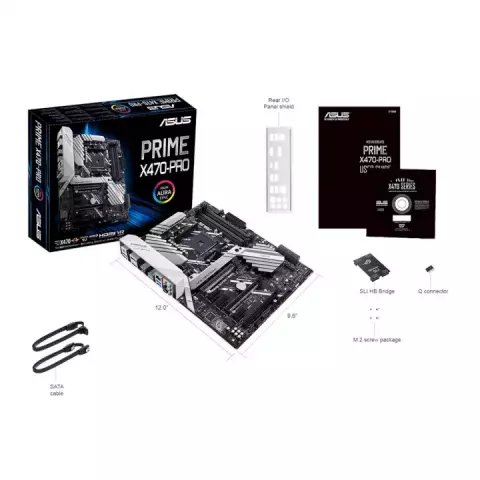

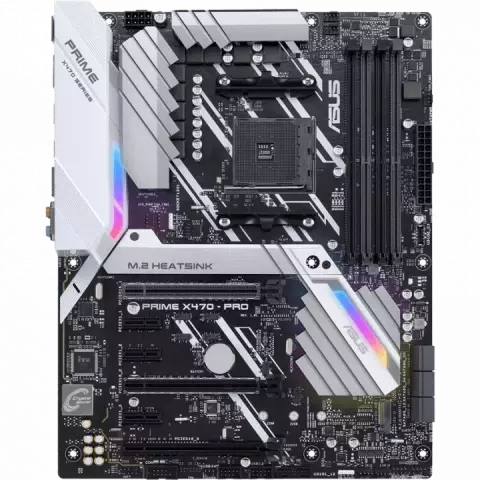

مادربرد ASUS مدل PRIME X470-PRO

AM4

AMD X470

AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors

DDR4

AMD Ryzen 2nd Generation Processors : 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz AMD 7th Generation A-Series/Athlon X4 Processors : 2400/2133 MHz

Dual Channel Memory Architecture ECC Memory (ECC model) support varies by CPU

HDMI/DisplayPort

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA mode)

Support Raid 0

1

10

Intel I211-AT

Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

2x PCIe 3.0 x16 (x16 or dual x8)

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector

5-Way Optimization by Dual Intelligent Processors 5 Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. Fan Xpert4 Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: 10 Phase digital power design ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention ASUS ESD Guards - Enhanced ESD protection ASUS TPU : Auto Tuning ASUS EPU : EPU AURA : Aura Lighting Control ASUS Exclusive Features : AI Suite 3 Ai Charger Turbo LAN ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS Fan Xpert 4 ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-Shield ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector Turbo APP featuring system performance tuning for selected applications
