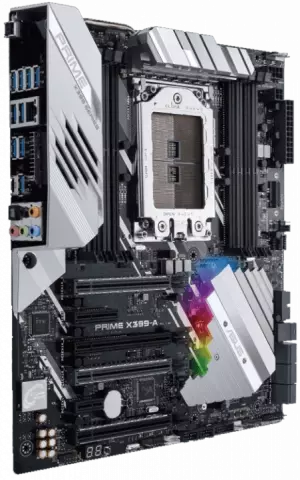

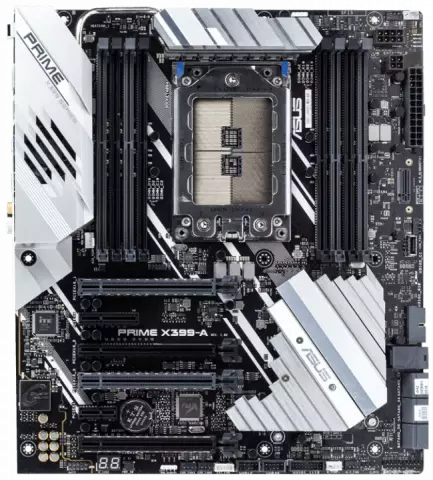

مادربرد Asus DDR4 مدل PRIME X399-A

STR4

AMD X399

AMD Ryzen Threadripper Processors

DDR4

3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

non-ECC

un-buffered memory

NVIDIA Quad-GPU SLI Technology NVIDIA 3-Way SLI Technology NVIDIA 2-Way SLI Technology

AMD Quad-GPU CrossFireX Technology AMD 3-Way CrossFireX Technology AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

0

1

10

Intel I211-AT

Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

4 x PCIe 3.0 x16 (single@x16

dual@x16/x16

triple@x16/x16/x8 mode) 1 x PCIe 2.0 x4 (max at x4 mode) 1 x U.2 port

1 x USB BIOS Flashback Button

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

1 x 3-pin Cover fan (COV_FAN) connector 1 x Q_Code 1 x U.2 port 2 x RGB Header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS button(s)

OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - USB BIOS Flashback - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
