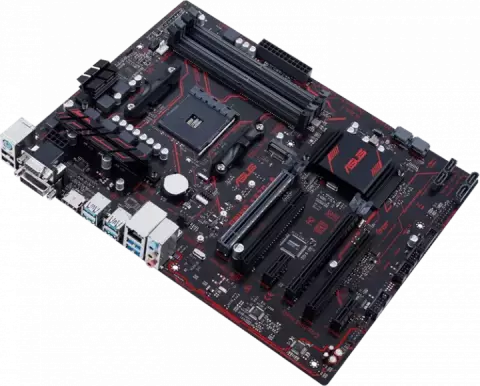

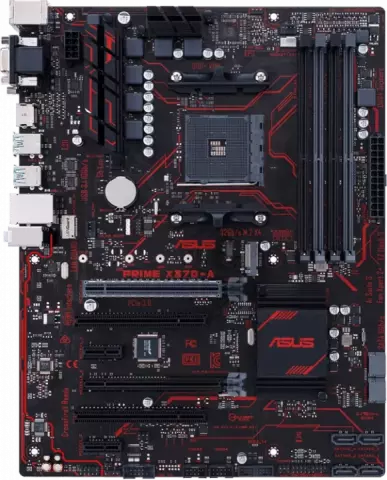

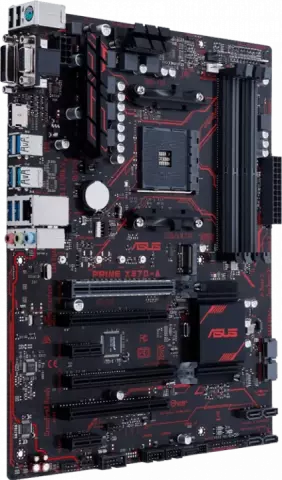

مادربرد Asus DDR4 مدل PRIME X370-A

AM4

AMD X370

AMD Ryzen/7th Generation A-series/Athlon Processors Supports AM4 Socket 14 nm CPU

DDR4

3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC

Un-buffered Memory

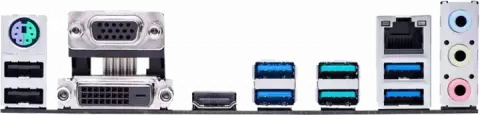

HDMI/DVI-D/RGB ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz Supports DVI-D with max. resolution 1920 x 1200 60 Hz Supports RGB with max. resolution 1920 x 1200 60 Hz

Supports AMD CrossFireX Technology

Support Raid 0

1

10

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887-VD2 8-Channel High Definition Audio CODEC

AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode)

2 x USB 3.1 4 x USB 3.1 Gen 1

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Fan RGB header 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : AI Suite 3 Ai Charger ESD Guards ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS Fan Xpert 2+ ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM
