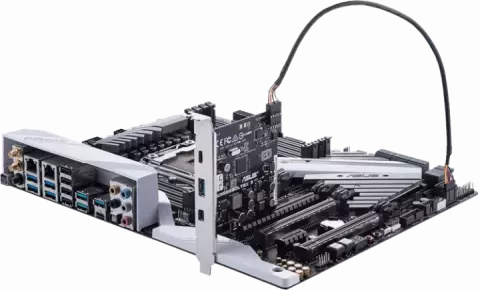

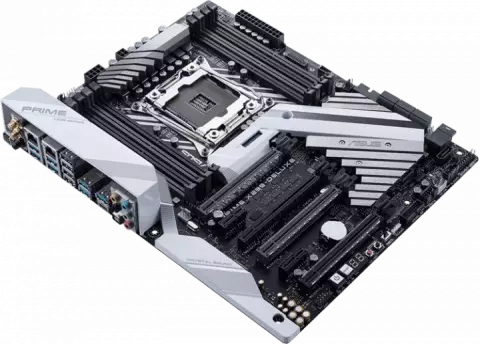

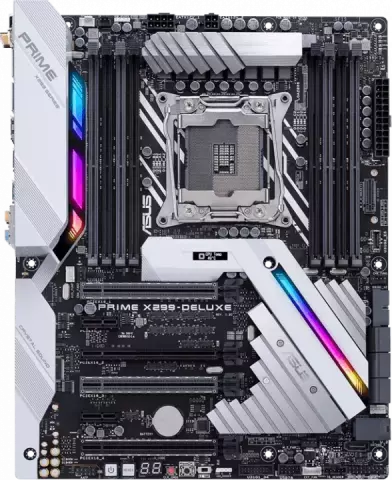

مادربرد Asus DDR4 مدل PRIME X299 DELUXE

LGA2066

Intel X299

X-Series

DDR4

Intel Core X-series Processors (6-core above) : 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Intel Core X-series Processors (4-core) : 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz

Intel Core X-series Processors (6-core above) : 8 x DIMM

Max. 128GB Intel Core X-series Processors (4-core) : 4 x DIMM

Max. 64GB

Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology

1 x M.2 x4 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

0

1

5

10

Intel® I219V

1 x Gigabit LAN Controller(s)

featuring Turbo LAN | Intel® I211-AT

1 x Gigabit LAN

featuring Turbo LAN | Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad

Realtek S1220A 8-Channel High Definition Audio CODEC

44-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16

x16/x16

x16/x16/x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16

x16/x8) 2 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 16-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 3.0/2.0 x16 (max at x2 mode) 2 x PCIe 3.0/2.0 x1 1 x U.2 port

1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1) USB 2.0 (one port can be switched to USB BIOS Flashback)

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 7 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x U.2 connector 1 x CPU_OV jumper

OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo Core App ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 8 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN File Transfer - Cloud GO! - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design with M.2 Heat-sink solution ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED

HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

Supports Intel® Smart Response Technology Intel® Rapid Storage Technology 15 support Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID Intel® Optane™ Memory Ready Bluetooth : Bluetooth V4.1 دارای قابلیت RGB
