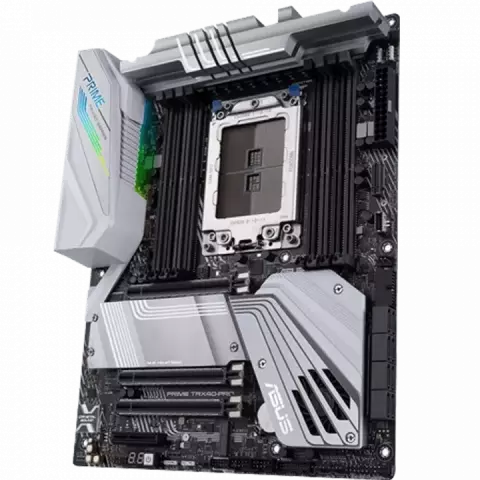

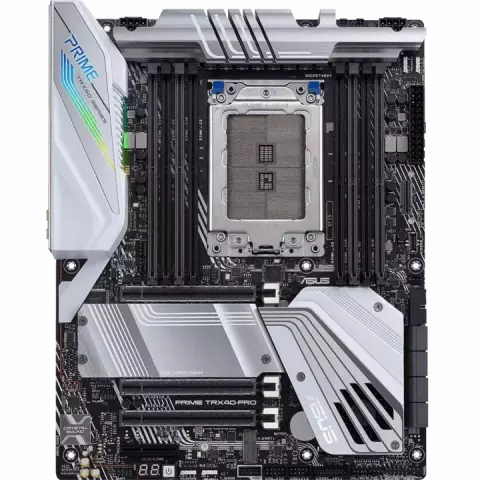

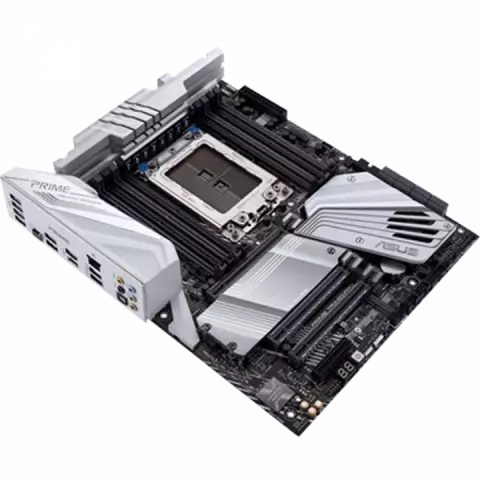

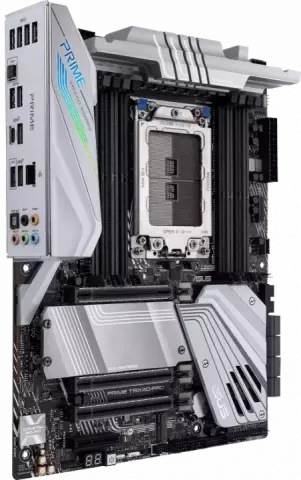

مادربرد ASUS مدل PRIME TRX40-PRO

sTRX4

AMD TRX40

AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series

DDR4

4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz

ECC and non-ECC

Un-buffered Memory

Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 2-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology Supports AMD 2-Way CrossFireX Technology

3rd Gen AMD Ryzen Threadripper Series Desktop processors : 2 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3

with vertical M key

type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

Raid 0

1

10

Intel I211-AT ASUS Turbo LAN Utility ASUS LAN Guard

Realtek ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

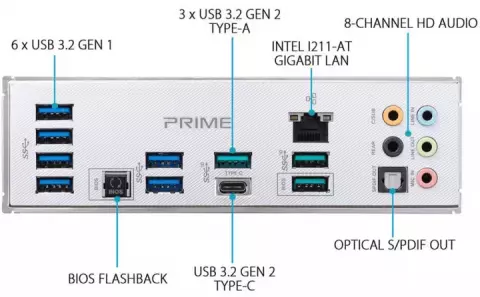

3 × USB 3.2 Gen2

1 × USB Type-C Gen2

6 × USB 3.2 Gen1

1 x USB BIOS FlashBack

ATX

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector

1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key

type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s)

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App ASUS SafeSlot - Protect your graphics card Investment AURA : Aura RGB Strip Headers Aura Lighting Effects Synchronization with compatible ASUS ROG devices Addressable Gen 2 Header ASUS Exclusive Features : AI Suite 3 Ai Charger Onboard Button : Power ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Turbo LAN Crystal Sound 3 Armoury Crate Pre-mounted I/O Shield ASUS Quiet Thermal Solution : Stylish Design Heat-pipe solution Stylish Fanless Design with M.2 Heat-sink solution ASUS Fan Xpert 4 ASUS EZ DIY : ASUS EZ Flash 3 ASUS USB BIOS FlashBack™ ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design : ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector
