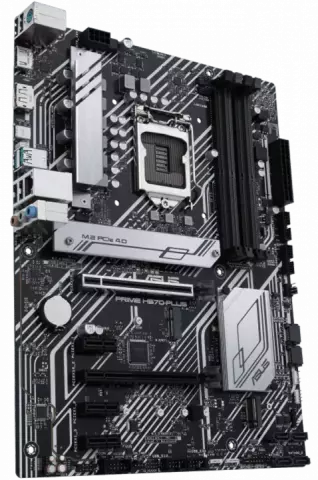

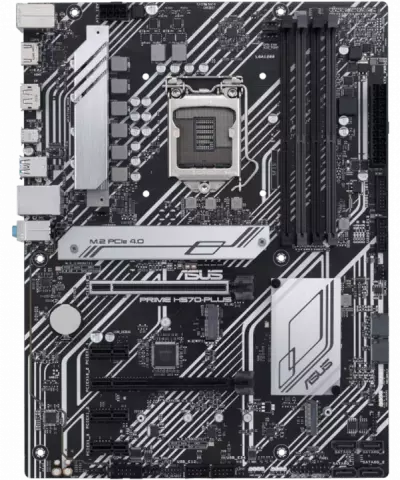

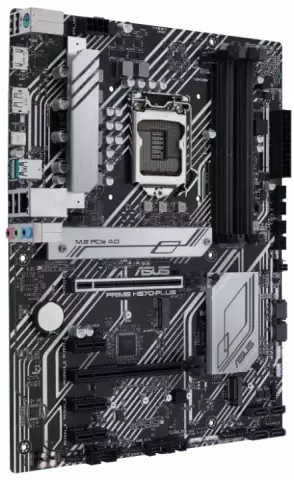

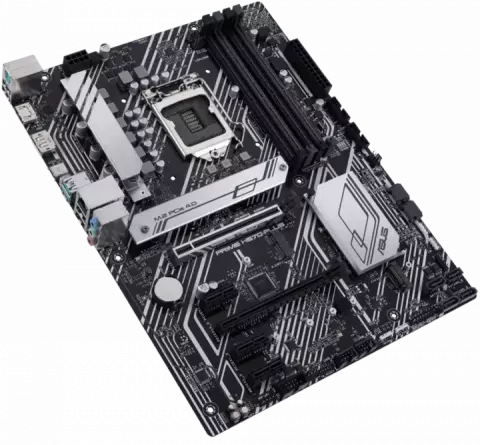

مادربرد ASUS مدل PRIME H570-PLUS

مبتنی بر Intel

LGA1200

Intel H570

نسل دهم و یازدهم Intel

سری Core، نسل یازدهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دهم Intel

DDR4

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz

دو کاناله

non-ECC

un-buffered memory

DisplayPort 1.4/HDMI 1.4/2.0

رزولوشن DisplayPort : 4096x2304 با فرکانس 60 هرتز رزولوشن HDMI : 4k با فرکانس 60 هرتز

M.2_1 slot (Key M), type 2242/2260/2280/22110

Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)

Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

Intel I219-V 1Gb Ethernet

ASUS LANGuard

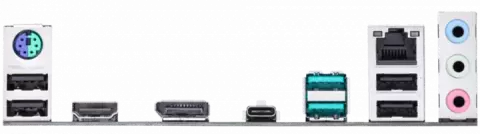

4 × USB 2.0

2 × USB 3.2 Gen2

1 × USB Type-C

ATX

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
