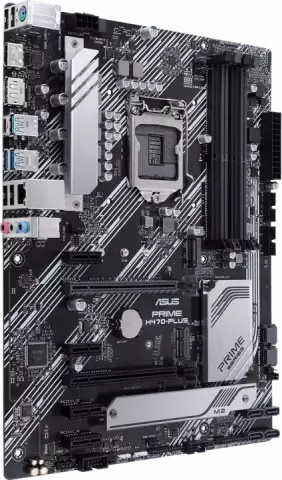

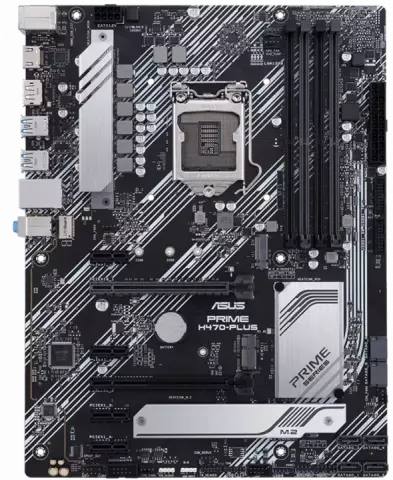

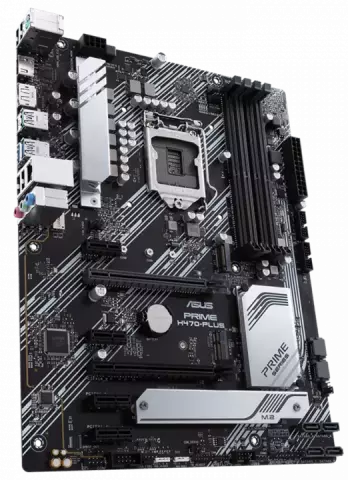

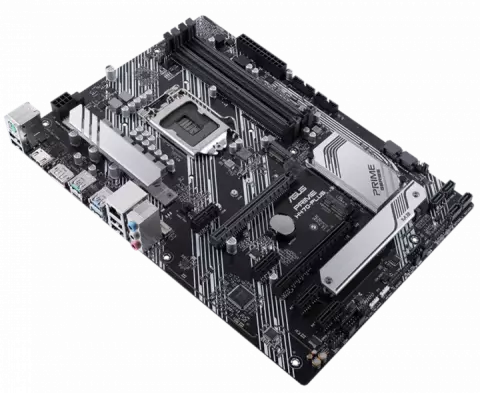

مادربرد ASUS مدل PRIME H470-PLUS

LGA1200

Intel H470

Intel Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

DDR4

2933/2800/2666/2400/2133 MHz

دو کاناله

non-ECC

un-buffered memory

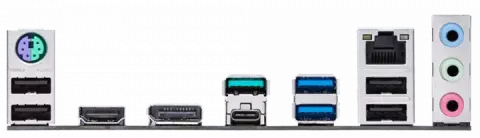

1xDisplayPort 1.4/1xHDMI 1.4b

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

RAID 0, 1, 5, 10

Intel Rapid Storage Technology supports

Realtek ALC887 8-Channel High Definition Audio CODEC

8 کانال

Realtek RTL8111H

2 × USB 3.2 Gen1

4 × USB 2.0

1 × USB 3.2 Gen2

1 × USB Type-C Gen2

ATX

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
