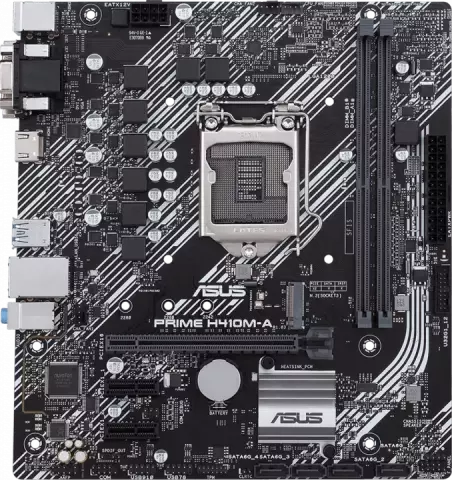

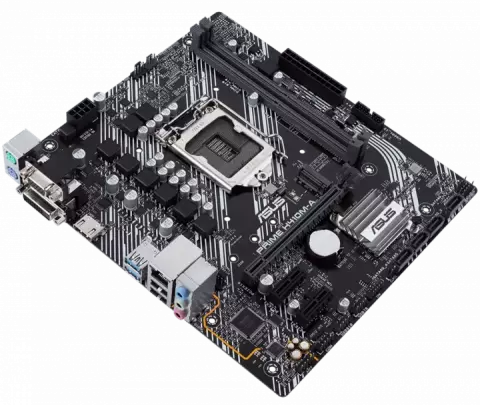

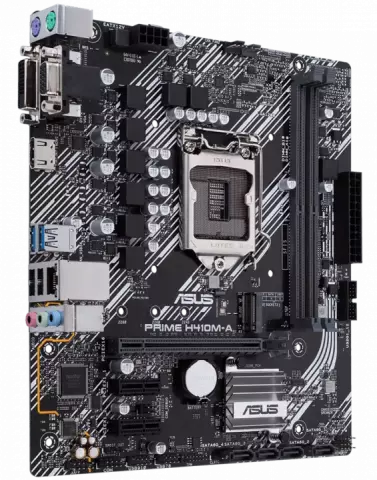

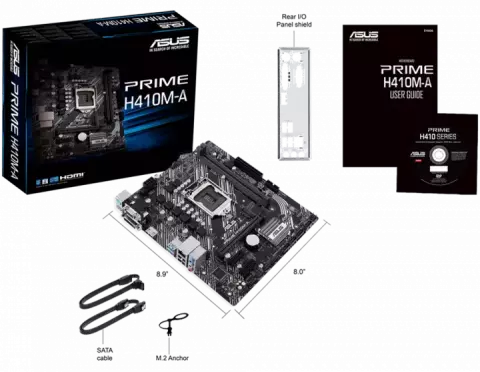

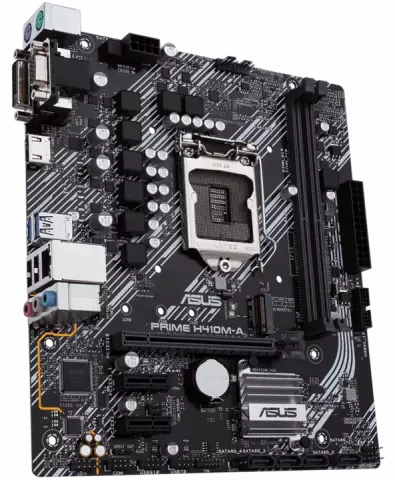

مادربرد ASUS مدل PRIME H410M-A

مبتنی بر Intel

LGA1200

Intel H410

نسل دهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل دهم Intel

DDR4

2933/2800/2666/2400/2133MHz

دو کاناله

non-ECC

un-buffered memory

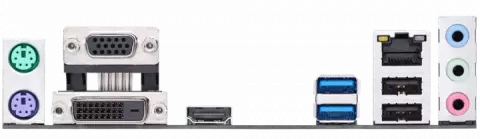

D-Sub / DVI-D / HDMI

1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

Realtek ALC887 7.1-Channel High Definition Audio CODEC

7.1 کانال

Realtek RTL8111H

1x DVI-D

2 × USB 3.2 Gen1

2 × USB 2.0

mATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
