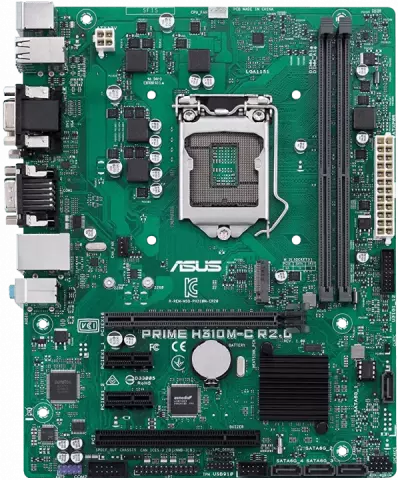

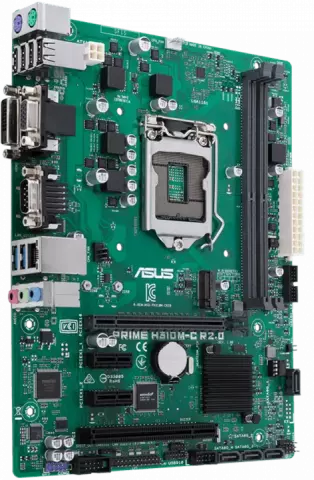

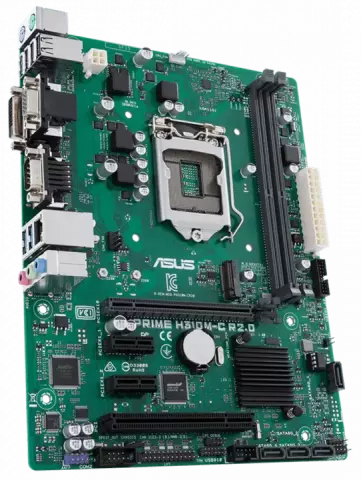

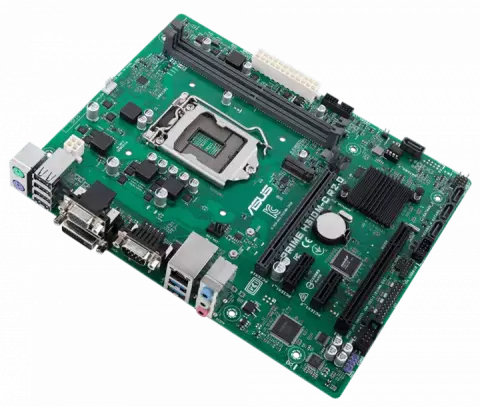

مادربرد ASUS مدل PRIME H310M-C R2.0

LGA1151 v2

Intel H310

Intel for 8th Generation Core Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2666/2400/2133 MHz

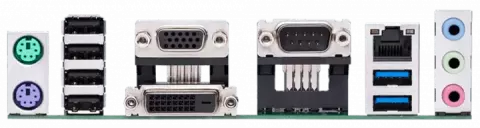

DVI-D/RGB ports

Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

1 x M.2 Socket 3

with M Key

type 2260/2280 storage devices support (both SATA & PCIE mode)

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

1 x DVI-D

uATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M key

type 2260/2280 storage devices support (SATA & PCIE x2 mode) 1 x LPT header 2 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header 1 x Speaker connector

Bespoke Motherboard Design & Business Focused Features : ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen ASUS Event Log: Record activities of system and provides information in BIOS ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching

speeding up the production line Box Headers: USB headers are box style

enabling fast connector installation and preventing pin damage Digi+VRM
