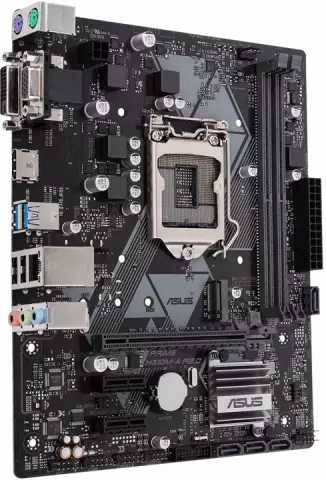

مادربرد ASUS مدل PRIME H310M-A R2.0

LGA1151 v2

Intel H310

9th / 8th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DVI-D/D-sub

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

Realtek RTL8111H

1 x Gigabit LAN

Realtek ALC887 8-Channel High Definition Audio CODEC

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector

ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
