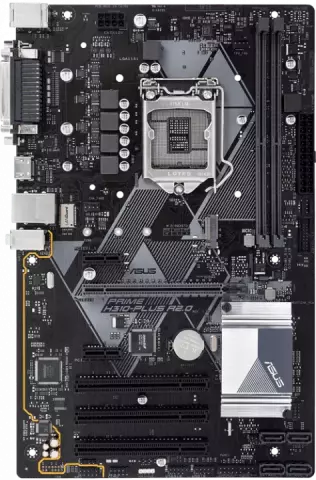

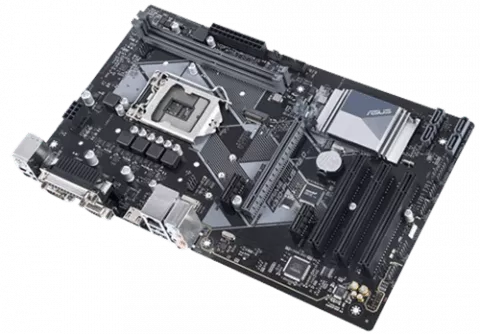

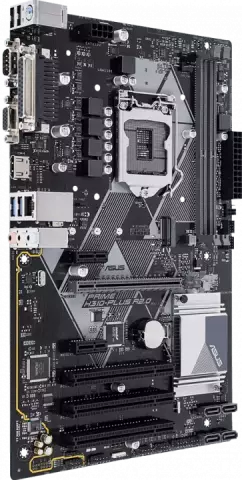

مادربرد ASUS مدل PRIME H310-PLUS R2.0

مبتنی بر Intel

LGA1151 v2

Intel H310

نسل هشتم و نهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل هشتم Intel، نسل نهم Intel

5

DDR4

2666/2400/2133

دو کاناله

non-ECC

un-buffered memory

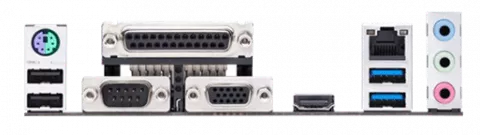

HDMI/D-Sub

Intel HD Graphics

Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

Realtek ALC887 8-Channel High Definition Audio CODEC

8 کانال

Realtek RTL8111H, 1 x Gigabit LAN Controller(s)

2 × USB 3.1 Gen1

2 × USB 2.0

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x RGB Header
