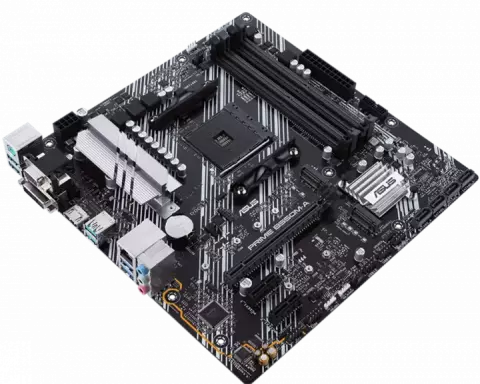

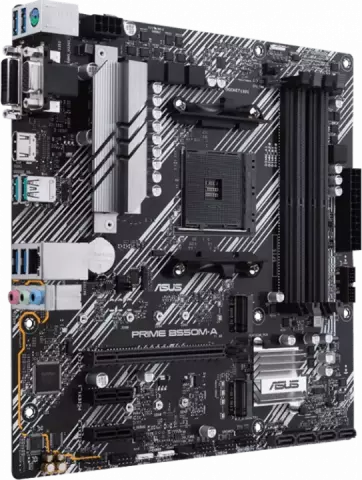

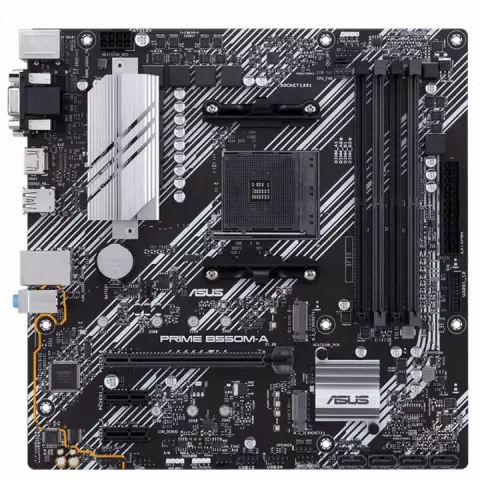

مادربرد ASUS مدل PRIME B550M-A

مبتنی بر AMD

AM4

AMD B550

سری Ryzen

Build in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors

DDR4

3rd Gen AMD Ryzen™ Processors 4 x DIMM

Max. 128GB

DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM

Max. 128GB

DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133

دو کاناله

DVI-D /HDMI /D-Sub

3rd Gen AMD Ryzen Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD B550 Chipset :

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

RAID 0, 1, 10

3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode)

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

Realtek RTL8111H 1Gb Ethernet

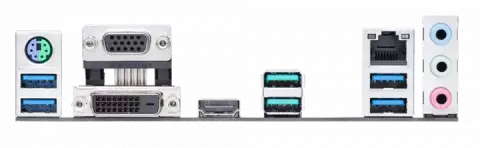

1xDVI-D

2 × USB 3.2 Gen2

4 × USB 3.2 Gen1

mATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
