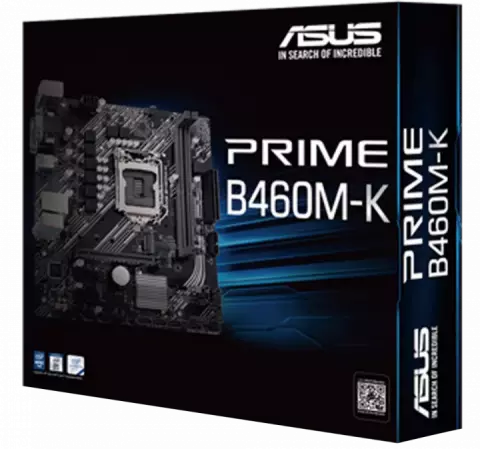

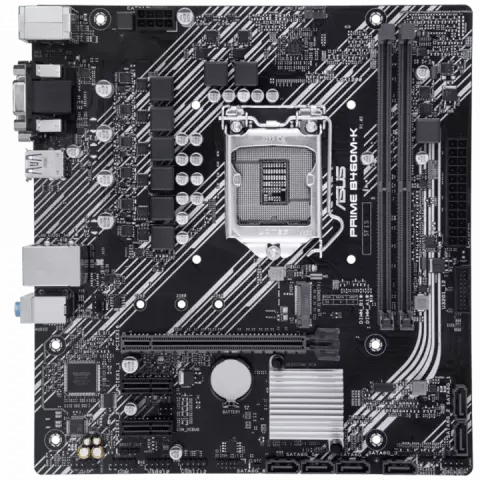

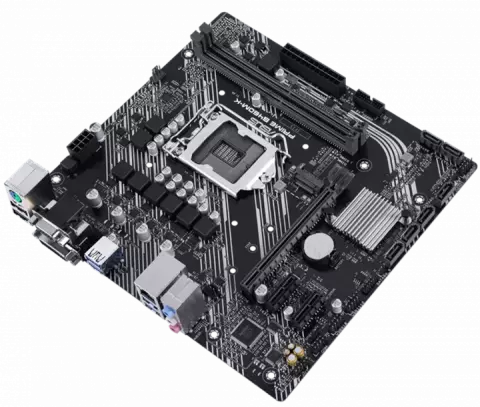

مادربرد Asus مدل PRIME B460M-K

LGA1200

intel B460

Intel Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors

DDR4

2933/2800/2666/2400/2133 MHz

دو کاناله

Non-ECC

Un-buffered Memory OptiMem

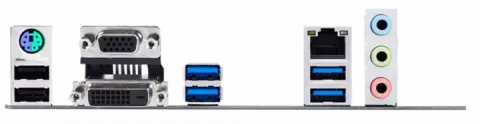

D-Sub / DVI-D

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

RAID 0, 1, 5, 10

پشتیبانی ازIntel Rapid Storage Technology

Realtek ALC887 High Definition Audio CODEC

7.1

Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

1xDVI-D

4 × USB 3.2 Gen1

2 × USB 2.0

mATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector
