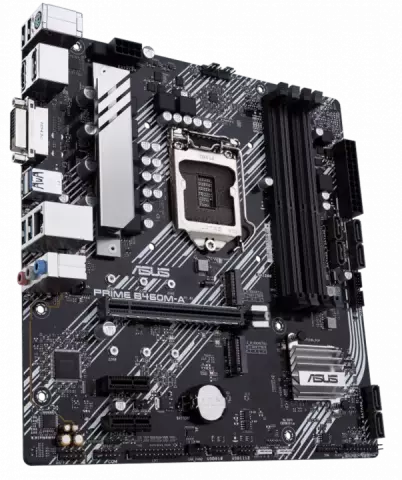

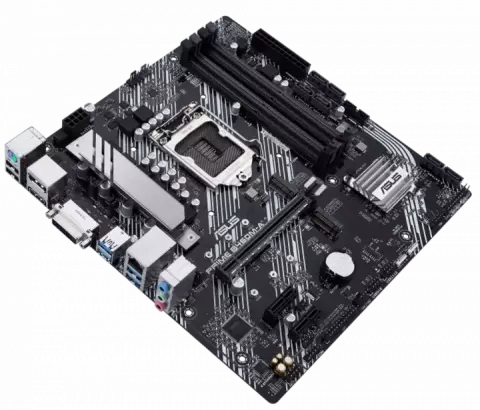

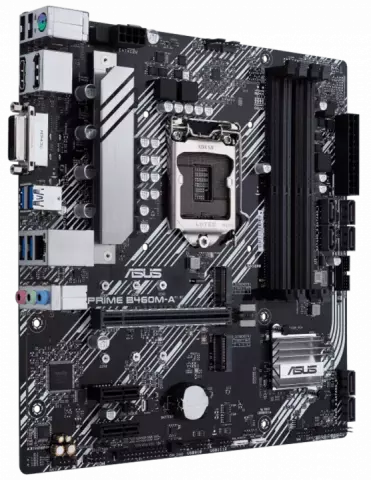

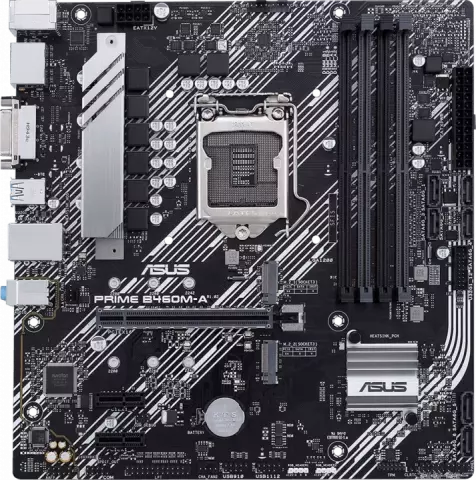

مادربرد ASUS مدل PRIME B460M-A

مبتنی بر Intel

LGA1200

intel B460

نسل دهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل دهم Intel

DDR4

2933/2800/2666/2400/2133MHz

DisplayPort / HDMI /DVI-D

Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

1x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

1x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

تکنولوژی intel rapid storage

Realtek ALC887 7.1-Channel High Definition Audio CODEC

7.1 کانال

Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

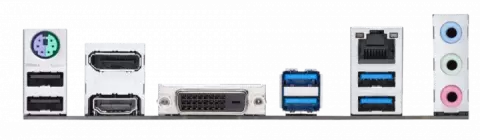

1xDVI-D

4 × USB 3.2 Gen1

2 × USB 2.0

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AAFP connector 2 x Aura RGB Strip Header(s)2 x M.2 Socket 3 1 x SPI TPM header 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
