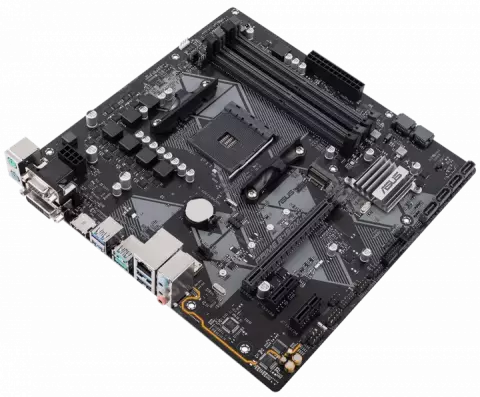

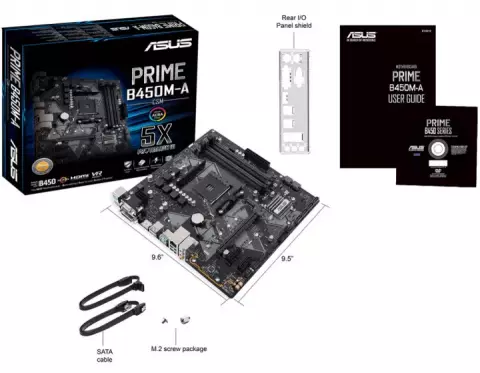

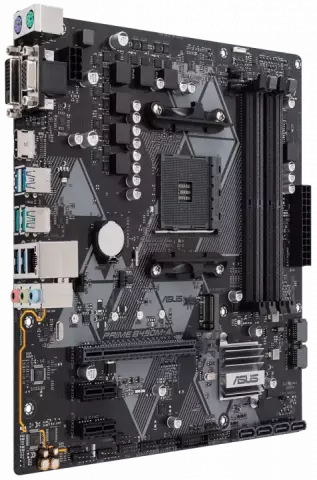

مادربرد ASUS مدل PRIME B450M-A/CSM

AM4

AMD B450

AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen

DDR4

3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133

Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU

HDMI/DVI-D/D-sub

Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with RadeonVega Graphics Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA mode)

Raid 0

1

10

Realtek RTL8111H

1 x Gigabit LAN Controller(s) ASUS LAN Guard

Realtek ALC887 8-Channel High Definition Audio CODEC

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution ASUS Fan Xpert 2+ ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM
