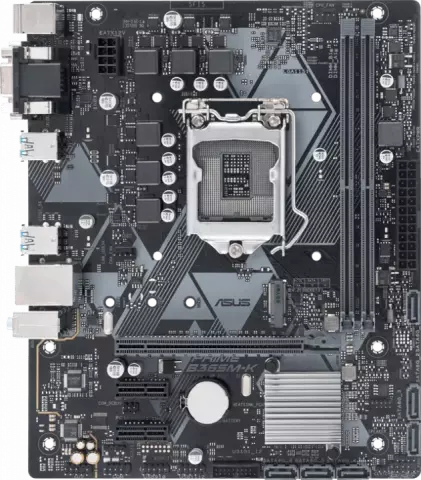

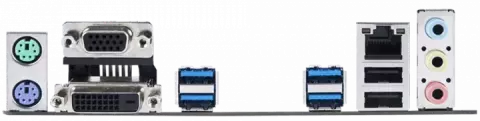

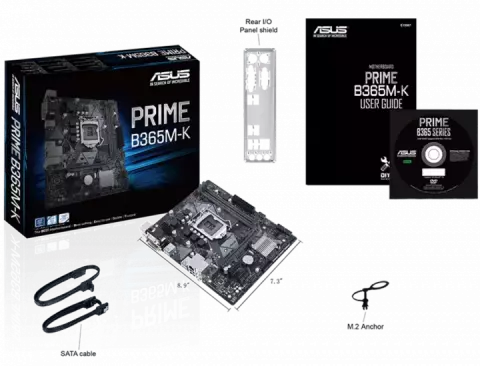

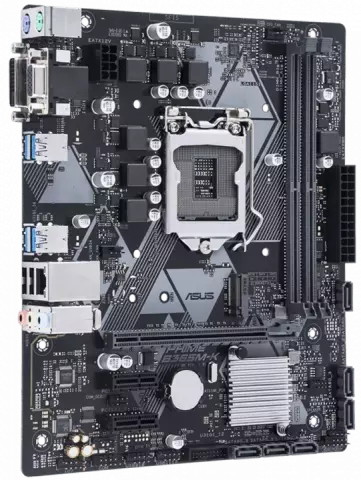

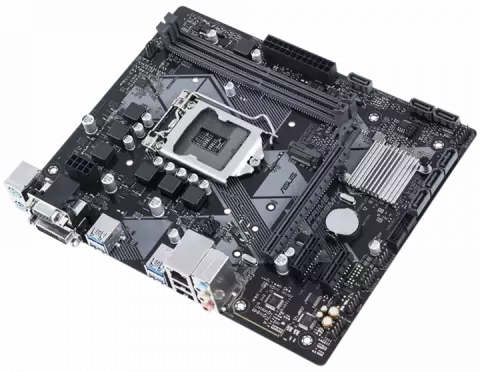

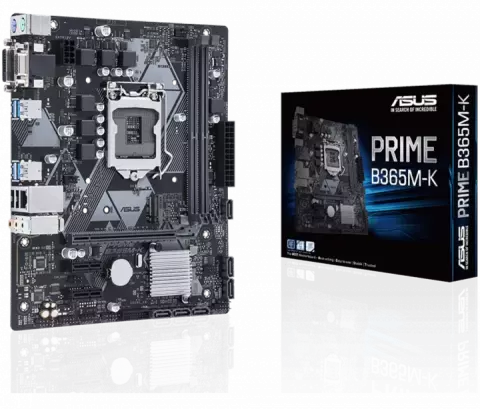

مادربرد ASUS مدل PRIME B365M-K

مبتنی بر Intel

LGA1151 v2

Intel B365

نسل هشتم و نهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل هشتم Intel، نسل نهم Intel

DDR4

2666/2400/2133 MHz

دو کاناله

DVI-D/D-Sub

رزولوشن DVI-D : 1920x1200 با فرکانس 60 هرتز رزولوشن D-Sub : 1920x1200 با فرکانس 60 هرتز

1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

RAID 0, 1, 5, 10

Realtek ALC887 8-Channel High Definition Audio CODEC

8 کانال

Realtek RTL8111H, 1 x Gigabit LAN

ASUS LAN Guard

1x DVI-D

4 × USB 3.1 Gen1

2 × USB 2.0

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)\

1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
