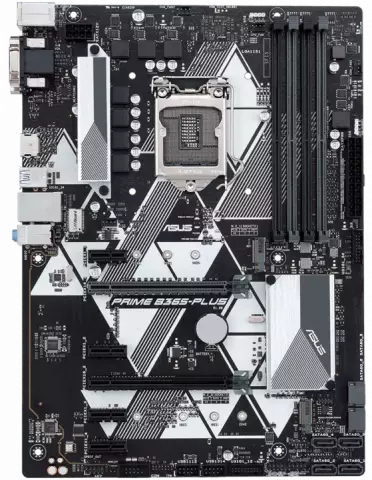

مادربرد ASUS مدل PRIME B365-PLUS

LGA1151 v2

Intel B365

Intel Socket 1151 9th / 8th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

DDR4 2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DVI-D/D-sub

Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 60 Hz - Supports D-sub with max. resolution 1920 x 1200 60 Hz Supports Intel InTru 3D

Quick Sync Video

Clear Video HD Technology

Insider

AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)1 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Raid 0

1

5

10

Realtek RTL8111H

1 x Gigabit LAN Controller(s) ASUS LAN Guard

Realtek ALC887 8-Channel High Definition Audio CODEC

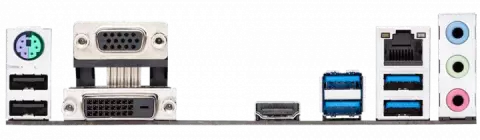

1 DVI-Dx

2 × USB 2.0

4 × USB 3.1 Gen1

ATX

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Mono Out header
