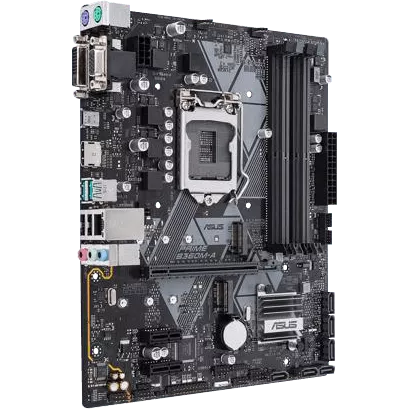

مادربرد Asus DDR4 مدل PRIME B360M-A

LGA1151 v2

Intel B360

Intel 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DVI-D/RGB ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

Realtek RTL8111H

1 x Gigabit LAN

Realtek ALC887 8-Channel High Definition Audio CODEC

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura RGB Strip Header 2 x M.2 Socket 3 for M Key

type 2242/2260/2280 devices 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Chassis intrusion header 1 x Speaker connector

ASUS 5X Protection III ASUS OptiMem ASUS EPU ASUS Exclusive Features ASUS Quiet Thermal Solution ASUS EZ DIY ASUS Q-Design M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
