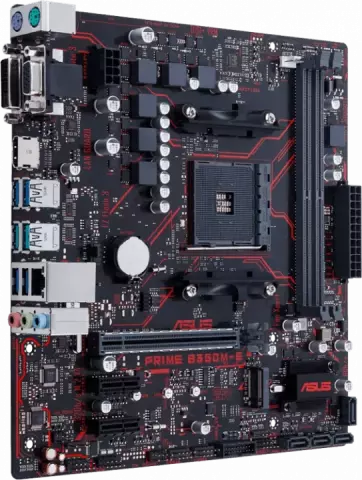

مادربرد Asus DDR4 مدل PRIME B350M-E

AM4

AMD B350

AMD Ryzen/7th Generation A-series/Athlon Processors Supports CPU up to 8 cores

DDR4

AMD Ryzen Processors : 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz AMD 7th Generation A-series/Athlon Processors : 2400/2133 MHz

ECC and non-ECC Un-buffered Memory

HDMI/DVI-D/RGB ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz Supports DVI-D with max. resolution 1920 x 1200 60 Hz Supports RGB with max. resolution 1920 x 1200 60 Hz

AMD Ryzen Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA mode)

Support Raid 0

1

10

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon Processors 1 x PCIe 3.0/2.0 x16 (x8 mode)

1 x DVI-D

mATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution ASUS Fan Xpert ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM
