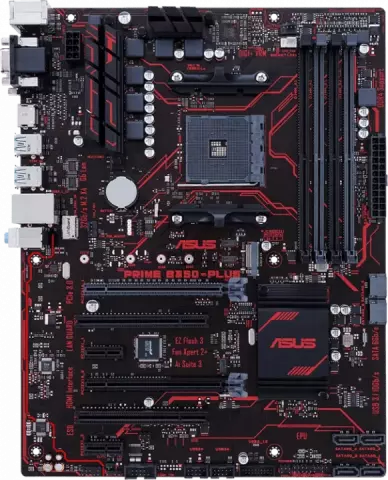

مادربرد Asus DDR4 مدل PRIME B350-PLUS

AM4

AMD B350

AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores

DDR4

DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DVI/RGB

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX™ Technology

AMD Ryzen™ Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices sup

Support Raid 0

1

5

10

Realtek® RTL8111H

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B350 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *3 2 x PCIe 2.0 x1 2 x PCI

1

2 x USB 3.1 (teal blue)

ATX

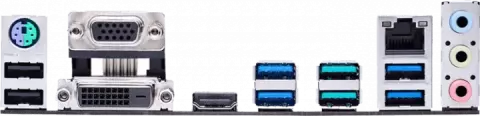

AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.0 port(s) (4 at back panel

blue) AMD B350 chipset : 2 x USB 3.1 port(s) (2 at back panel

teal blue) AMD B350 chipset : 2 x USB 3.0 port(s) (2 at mid-board) AMD B350 chipset : 6 x USB 2.0

1 x Fan RGB header 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE

ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power desig
