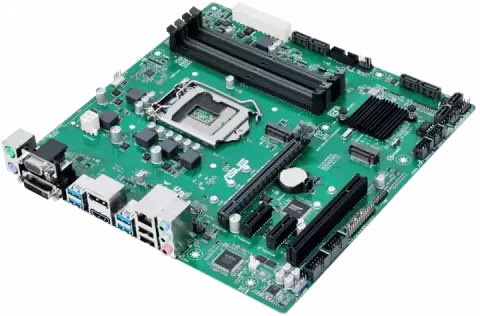

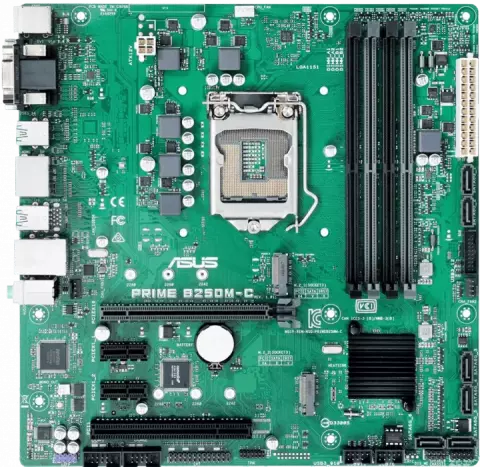

مادربرد ASUS مدل PRIME B250M-C

LGA1151

Intel B250

Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU

DDR4

DDR4 2400/2133 MHz

non-ECC

un-buffered memory

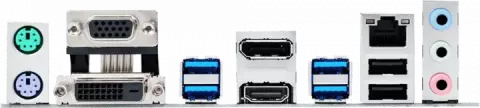

HDMI | DVI-D | RGB | DisplayPort ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (x4 PCIE mode)

Intel® I219V

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1 x PCIe 3.0/2.0 x16

1

microATX

Intel® B250 Chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel

blue

2 at mid-board) Intel® B250 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel

black

4 at mid-board)

1 x MONO out header 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M

ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS
