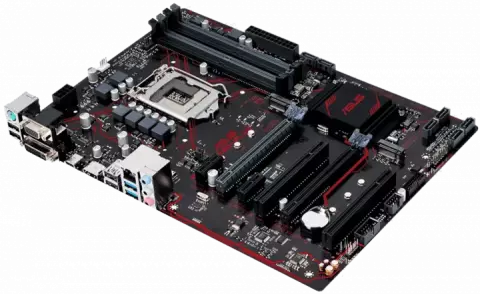

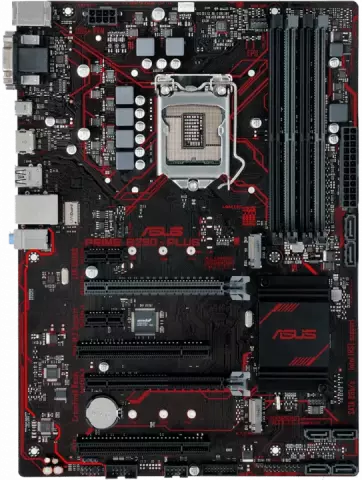

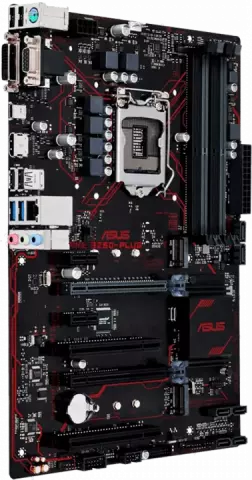

مادربرد Asus DDR4 مدل PRIME B250-PLUS

LGA1151

Intel B250

Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU

DDR4

DDR4 2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI | DVI-D | RGB ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX™ Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

Realtek® RTL8111H

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1

1 x USB 5Gb/s port(s) Type-C ( support 3A power output )

ATX

Intel® B250 Chipset : 1 x USB 3.0 port(s) (1 at back panel

Type-C

Reversible

Support 3A power output) Intel® B250 Chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel

blue

Type-A

2 at mid-board) Intel® B250 Chipset : 6 x USB 2.0/1.1 port(s) (4 at ba

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis F

ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS
