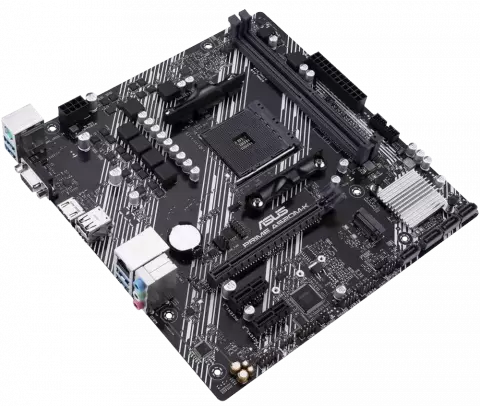

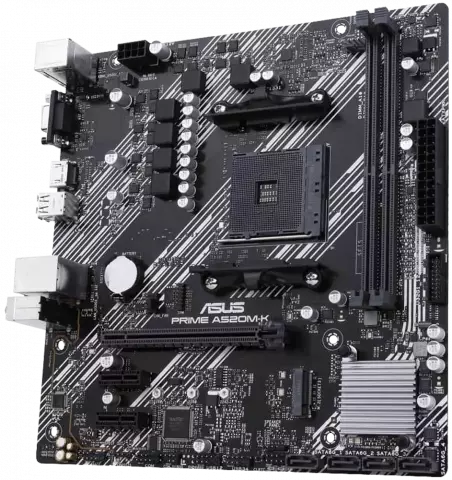

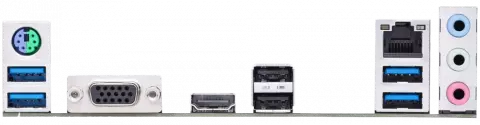

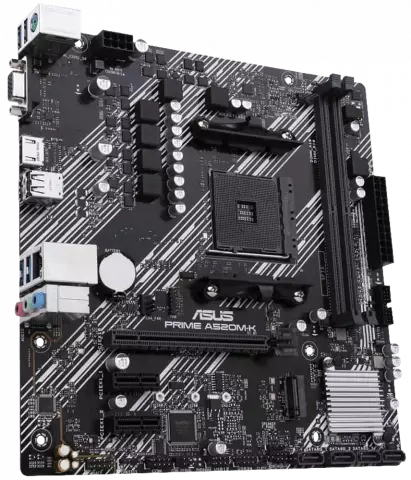

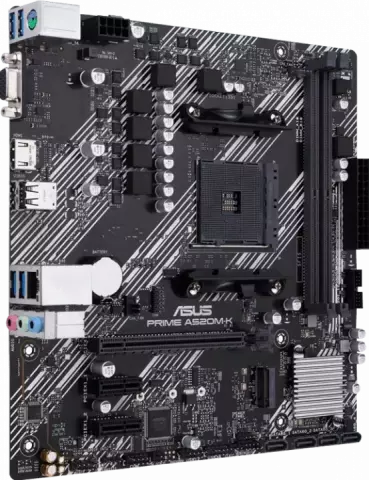

مادربرد ASUS مدل PRIME A520M-K

AM4

AMD A520

پردازنده های AMD Ryzen سری 5000، سری 4000G و سری 3000

DDR4

4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133

دو کاناله

Un-buffered Memory ECC Memory (ECC mode) support varies by CPU

D-Sub / HDM

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

RAID 0, 1, 10

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

Realtek RTL8111H 1Gb Ethernet

ASUS LANGuard

4 × USB 3.2 Gen1

2 × USB 2.0

mATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
