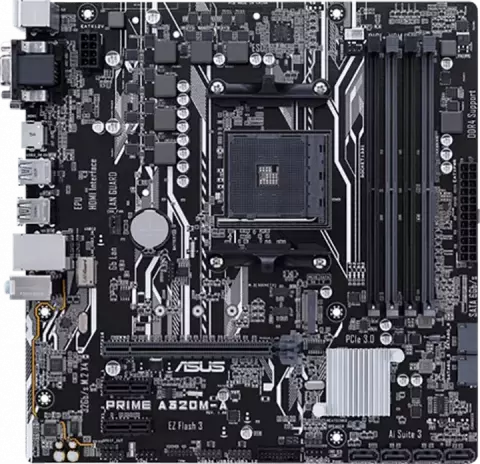

مادربرد Asus DDR4 مدل PRIME A320M-A

AM4

AMD A320

AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores

DDR4

AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation Processors : 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz AMD 7th Generation A-Series/Athlon X4 Processors : 3200(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

ECC Memory (ECC mode) support varies by CPU Dual Channel Memory Architecture

HDMI/DVI/RGB ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz Supports DVI-D with max. resolution 1920 x 1200 60 Hz Supports RGB with max. resolution 1920 x 1200 60 Hz

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA mode)

Support Raid 0

1

10

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD A320 chipset : 2 x PCIe 2.0 x1

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

ASUS 5X Protection III ASUS Exclusive Features ASUS Quiet Thermal Solution ASUS EZ DIY ASUS Q-Design
