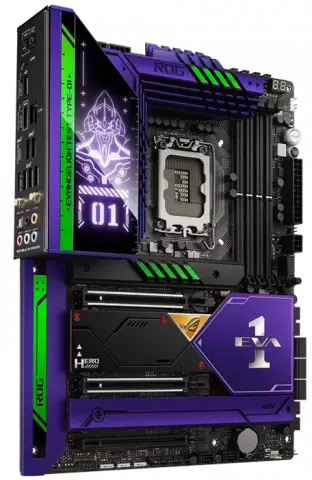

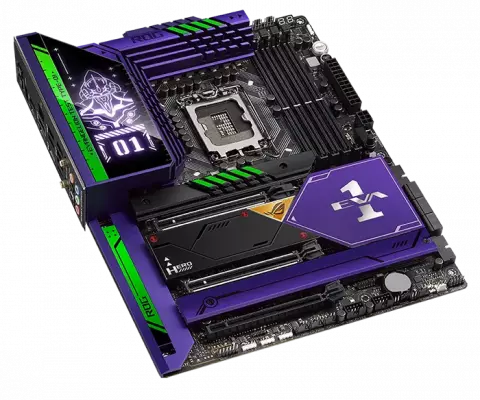

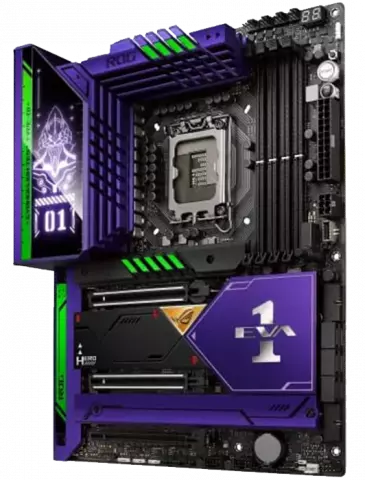

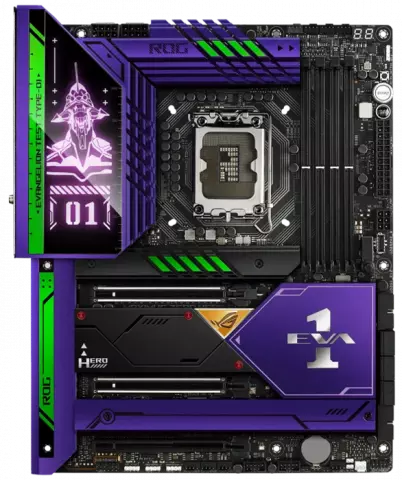

مادربرد ASUS مدل MAXIMUS Z690 HERO EVA EDITION ROG

مبتنی بر Intel

LGA1700

Intel Z690

نسل دوازدهم و سیزدهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل دوازدهم Intel، نسل سیزدهم Intel

21

DDR5

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC

Un-buffered Memory

دو کاناله

1x HDMI port 2x Intel Thunderbolt 4 ports

رزولوشن HDMI 2.1 : 4K با فرکانس 60 هرتز

Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs

:Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)

Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode

Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110

Intel 13th & 12th Gen processors support PCIe 5.0 x4 mode

:Intel® Z690 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)

Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)

0/1/5/10

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

7.1 کانال

1x Intel 2.5Gb Ethernet

ASUS LANGuard

Intel Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

v5.2

2xThunderbolt 4 TypeC

6x USB 3.2 Gen 2 ports type A

USB Type-C 3.2 Gen 2 x 1

2 × USB 2.0

ATX

1x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports

1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers 1x W_PUMP+ header 1x 2-pin Water In header 1x 2-pin Water Out header 1x 3-pin Water Flow header 1x 24-pin Main Power connector 2x 8-pin +12V Power connector 1x 6-pin PCIe Graphics Card connector 3x Addressable Gen 2 headers 1x AURA RGB header 1x FlexKey button 1x Front Panel Audio header (AAFP) 1x SPI TPM header (14-1pin) 1x Start button 1x ReTry button 1x 10-1 pin System Panel header 1x Thermal Sensor header

Extreme OC Kit Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support ASUS HYDRANODE ROG Exclusive Software ASUS Exclusive Software UEFI BIOS
