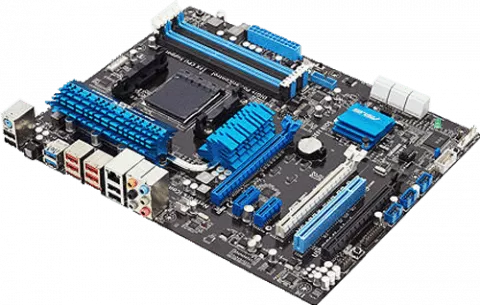

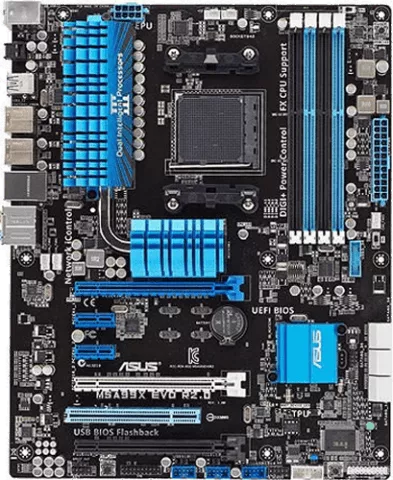

مادربرد Asus DDR3 مدل M5A99X EVO R2.0

AM3+

AMD 990X/SB950

FX/Phenom II/Athlon II/Sempron 100 Series Processors

DDR3

2133(O.C.)/1866/1600/1333/1066 MHz

ECC

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

Supports NVIDIA Quad-GPU SLI Technology

Supports AMD Quad-GPU CrossFireX Technology

0

1

5

10

Realtek 8111F

1 x Gigabit LAN Controller(s)

Realtek ALC892 8-Channel High Definition Audio CODEC

2 x PCIe 2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode

black)

2 x eSATA 6Gb/s

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s)

ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control : SMART DIGI+ : Smart DIGI+ Key- Quickly delivers optimized VRM frequency

voltage and current for superior CPU/DRAM overclocking performance with one click. ASUS TPU : Auto Tuning TurboV TPU switch ASUS EPU : EPU EPU switch ASUS Digital Power Design : Industry leading Digital 6 +2 Phase Power Design Industry leading Digital 2 Phase DRAM Power Design CPU Power Utility DRAM Power Utility ASUS Exclusive Features : Remote GO! USB BIOS Flashback MemOK! AI Suite II Ai Charger+ Front Panel USB 3.0 Support ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Network iControl USB 3.0 Boost ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-pipe solution ASUS Fan Xpert ASUS EZ DIY : DirectKey Precision Tweaker 2 ASUS O.C. Profile ASUS EZ Flash 2 ASUS MyLogo 2 Multi-language BIOS ASUS Q-Design : ASUS Q-Shield ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector
