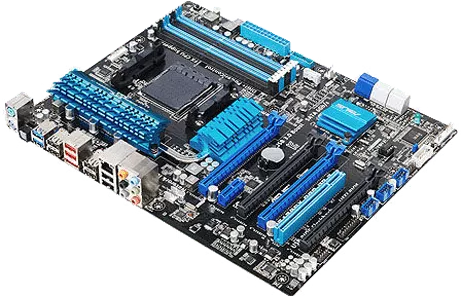

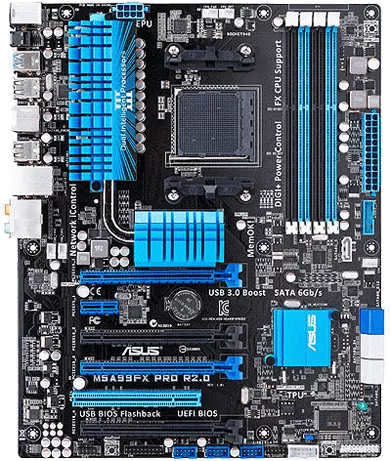

مادربرد ASUS مدل M5A99FX PRO R2.0

AM3+

AMD 990FX/SB950

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors

DDR3

DDR3 2133(O.C.)/1866/1600/1333/1066 MHz

ECC

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

Supports NVIDIA® Quad-GPU SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology

Realtek® 8111F

1 x Gigabit LAN Controller(s)

Realtek® ALC892 8-Channel High Definition Audio CODEC

2 x PCIe 2.0 x16 (dual x16) 2 x PCIe 2.0 x16 (x4 mode

black) 1 x eSATA port(s)

red

1 x eSATA

ATX

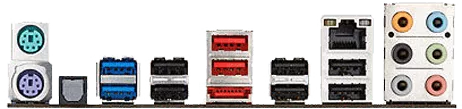

ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel

blue

2 at mid-board) AMD SB950 controller : 14 x USB 2.0 port(s) (8 at back panel

black

6 at mid-board)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 7 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s)

ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control : SMART DIGI+ : - Smart DIGI+ Key- Quickly delivers optimized VRM frequency

voltage and current for superior CPU/DRAM overclocking performance with one click. ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 6 + 2 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - Remote GO! - USB BIOS Flashback - MemOK! - AI Suite II - Ai Charger+ - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution - ASUS Fan Xpert ASUS EZ DIY : - DirectKey - Precision Tweaker 2 - ASUS O.C. Profile - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
