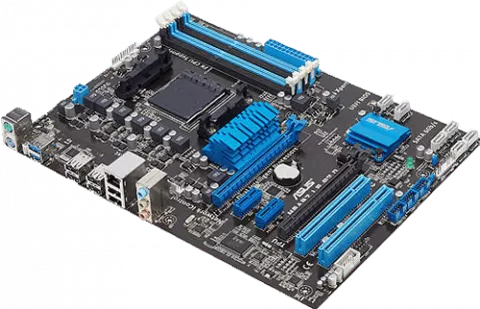

مادربرد ASUS مدل M5A97 LE R2.0

AM3+

AMD 970/SB950

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors

DDR3

DDR3 2133(O.C.)/1866/1600/1333/1066 MHz

ECC

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

Supports AMD Quad-GPU CrossFireX™ Technology

Support Raid 0

1

5

10

Realtek® 8111F

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1 x PCIe 2.0 x16 (blue) 1 x PCIe 2.0 x16 (x4 mode

black)

ATX

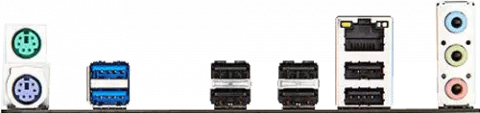

ASMedia® USB 3.0 controller : 2 x USB 3.0/2.0 port(s) (2 at back panel

blue) AMD SB950 controller : 12 x USB 2.0/1.1 port(s) (6 at back panel

black

6 at mid-board)

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s)

ASUS Dual Intelligent Processors - TPU & EPU : ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU ASUS Power Design : - 4 +2 Phase Power Design ASUS Exclusive Features : - AI Suite II - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Profile - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot
