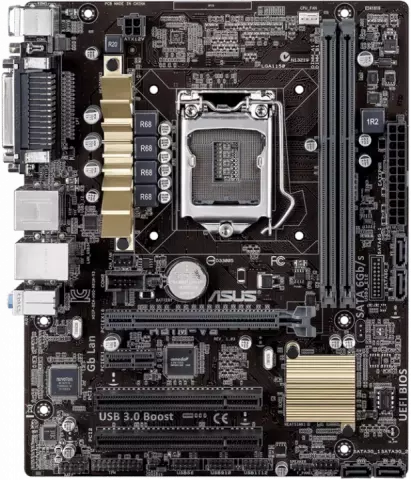

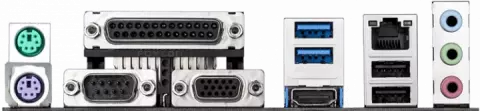

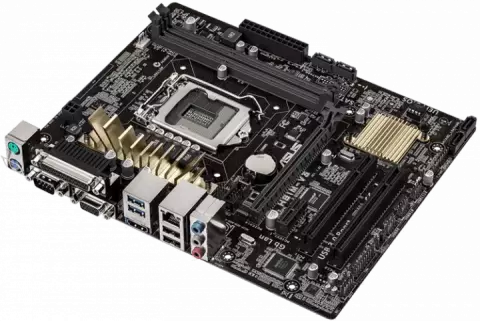

مادربرد Asus DDR3 مدل H81M-V3

LGA1150

Intel H81

Intel Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron Processors

DDR3

1600/1333/1066 MHz

Dual channel memory architecture

HDMI/RGB

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Realtek® RTL8111G

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC *2

1 x PCIe 2.0 x16

1 x COM port(s)

mATX

Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel

blue) Intel® H81 chipset : 8 x USB 2.0 port(s) (2 at back panel

6 at mid-board)

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS 5X Protection : ASUS DIGI+ VRM - 4 Phase digital power design ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention ASUS ESD Guards - Enhanced ESD protection ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU : EPU ASUS Exclusive Features : GPU Boost AI Suite 3 Ai Charger Anti-Surge ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface USB 3.0 Boost ASUS Quiet Thermal Solution : ASUS Fan Xpert ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM
