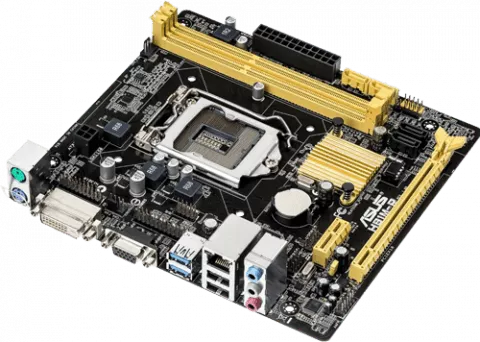

مادربرد Asus DDR3 مدل H81M-C

LGA1150

Intel H81

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR3

DDR3 1600/1333/1066 MHz

Memory Dual Channel Memory Architecture

DVI-D/RGB

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Realtek® RTL8111G

1 x Gigabit LAN Controller(s)

Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2

1

mATX

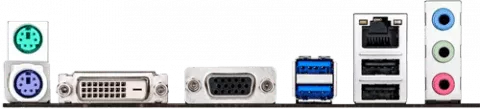

Intel® H81 chipset : 2 x USB 3.0 port(s) (2 at back panel

blue) Intel® H81 chipset : 8 x USB 2.0 port(s) (4 at back panel

4 at mid-board)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Slot 100% All High-quality Conductive Polymer Capacitors
