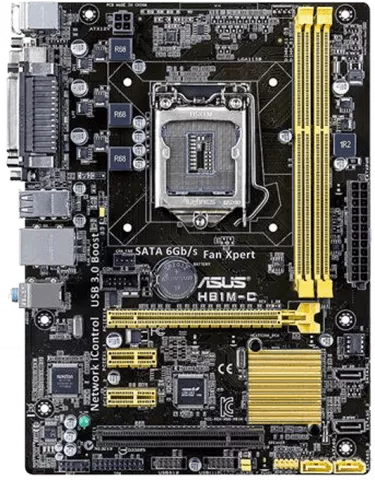

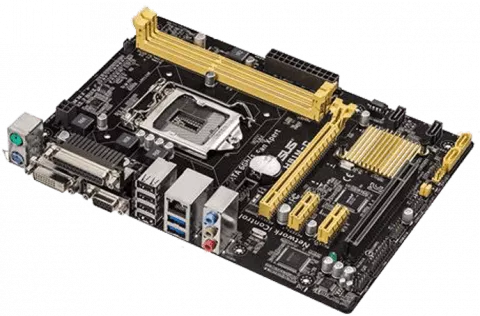

مادربرد Asus DDR3 مدل H81M-C

LGA1150

Intel H81

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR3

1600/1333/1066 MHz

Dual Channel Memory Architecture of DDR3 1600 Mhz

DVI-D/RGB

Multi-VGA output support : DVI-D/RGB ports Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Realtek® RTL8111G

1 x Gigabit LAN Controller(s)

Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2

Supports : Jack-detection

Multi-streaming

Front Panel Jack-retasking

Anti-pop Function

1

mATX

Intel® H81 chipset : 2 x USB 3.0 port(s) (2 at back panel

blue) Intel® H81 chipset : 8 x USB 2.0 port(s) (4 at back panel

4 at mid-board) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x TPM header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS EPU : EPU ASUS Exclusive Features : GPU Boost AI Suite 3 Ai Charger Anti-Surge ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Network iControl USB 3.0 Boost ASUS Quiet Thermal Solution : ASUS Fan Xpert ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 ASUS Q-Design : ASUS Q-Slot 100% All High-quality Conductive Polymer Capacitors
