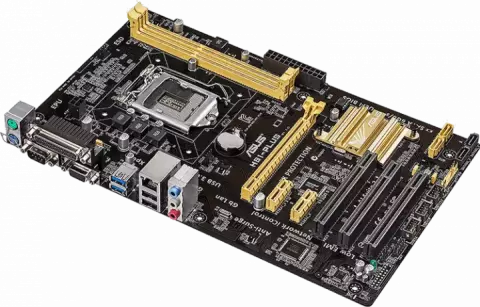

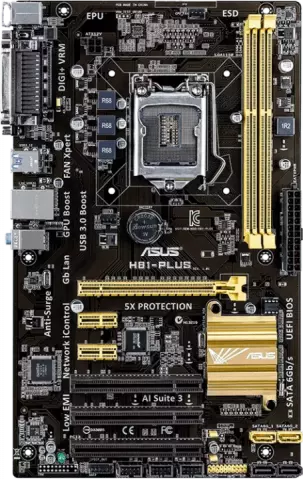

مادربرد Asus DDR3 مدل H81-PLUS

LGA1150

Intel H81

Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

DDR3

DDR3 1600/1333/1066 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

RGB

Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 HzSupports Intel InTru 3D

Quick Sync Video

Clear Video HD Technology

Insider

Realtek 8111G

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

Supports Intel Rapid Start Technology

Intel Smart Connect Technology

1 x COM port(s)

ATX

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s)

ASUS 5X Protection : - ASUS DIGI+ VRM - 3 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - Low EMI Solution - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot
