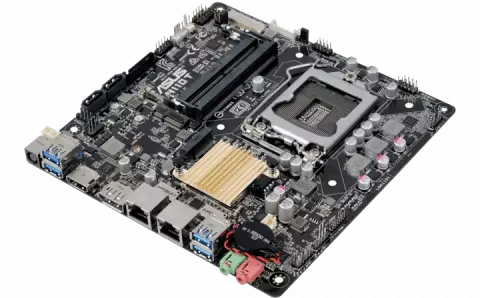

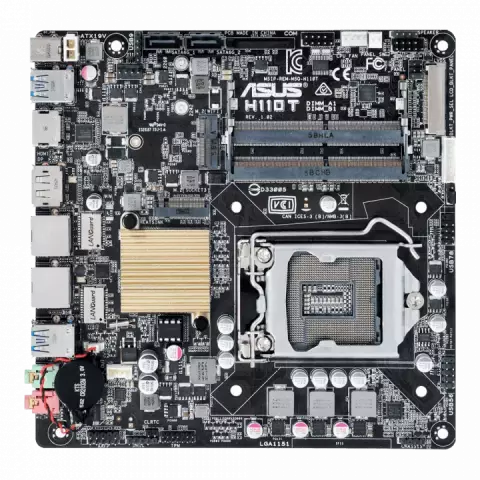

مادربرد Asus DDR4 مدل H110T/CSM

LGA1151

Intel H110

Intel for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Intel 14 nm CPU Intel Turbo Boost Technology 2.0

DDR4

2133 MHz

HDMI-LVDS-DisplayPort

1 x M.2 Socket 3

with M key

type 2242/2260 storage devices support (both SATA & PCIE mode)

Realtek RTL8111H 1 x Gigabit LAN Controller(s) - Intel I219V 1 x Gigabit LAN

Realtek ALC887 7.1-Channel High Definition Audio CODEC

1 x DC power connector

Mini-ITX

3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port

1 x M.2 Socket 1 with E key

type 2230 Wi-Fi devices support 1 x M.2 Socket 3 with M key

type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x SATA power connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) () 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 2-pin internal DC power connector 1 x Stereo speaker connector 1 x DMIC header 1 x Backlight inverter voltage selection header 1 x FPD brightness header 1 x Panel voltage selection header 1 x Panel off header 1 x LVDS connector(s) 1 x 14-1 pin TPM connector 1 x System panel connector

ASUS 5X Protection II : ASUS LANGuard - 2.5X higher surge tolerance ASUS Overvoltage Protection - World-class circuit-protecting power design ASUS DIGI+ VRM - 3 Phase digital power design ASUS DRAM Overcurrent Protection - Prevents damage from short circuits ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS Exclusive Features : AI Suite 3 Ai Charger Mobo Connect PC Cleaner ASUS Quiet Thermal Solution : ASUS Fan Xpert ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Push Notice 100% All High-quality Conductive Polymer Capacitors Media Streamer
