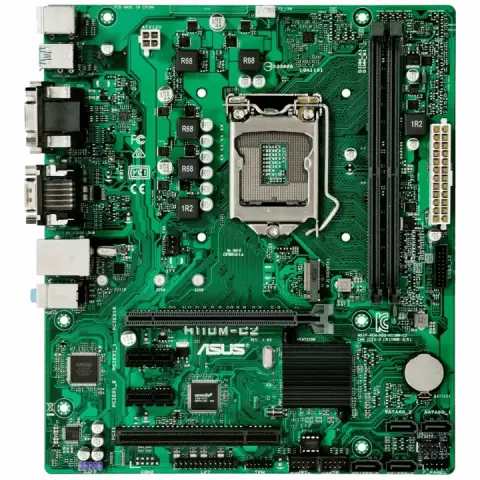

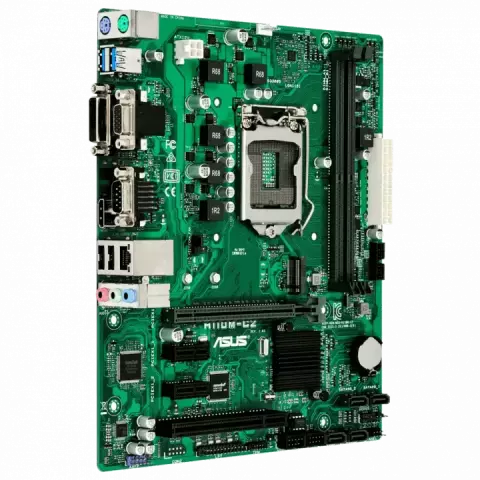

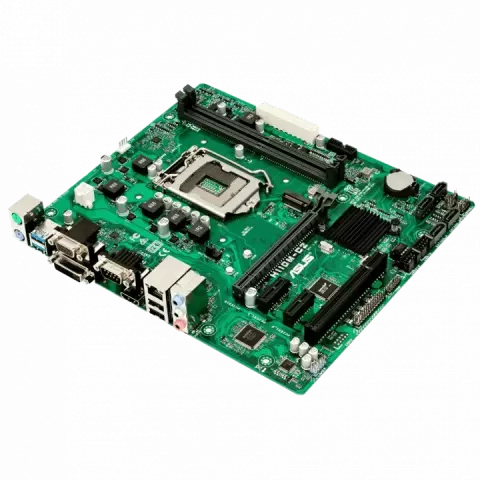

مادربرد Asus DDR4 مدل H110M-C2/CSM

LGA1151

Intel H110

7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2400/2133 MHz

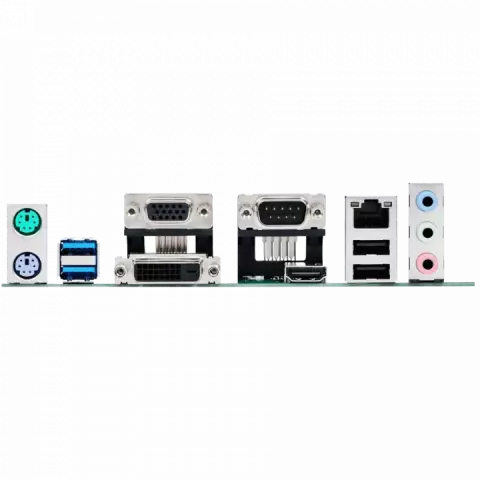

HDMI / DVI-D / RGB

Supports VGA with max. resolution 1920 x 1200 @ 60 Hz Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

1 x M.2 Socket 3

Intel I219V

1 x Gigabit LAN Controller(s)

Realtek ALC887 7.1-Channel High Definition Audio CODEC

1 x DVI-D

1 x COM port(s)

mATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 for M Key

type 2260/2280/22110 storage devices support ( Support PCIE SSD only) 1 x LPT header 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header

ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 5 Phase digital power design - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
